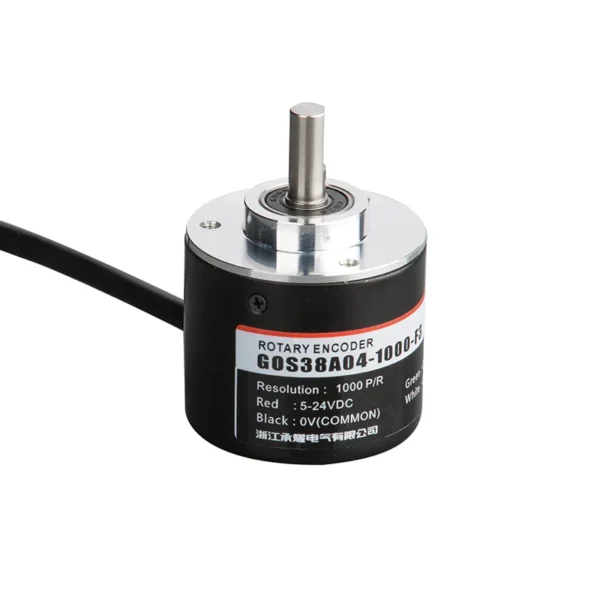

| G | 0 | S | 38 | □ | A | 04 | 1000 T | 3 | 2M | ||||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
Size of main
shaft,shaft hole |
Outlet and
sealing form |

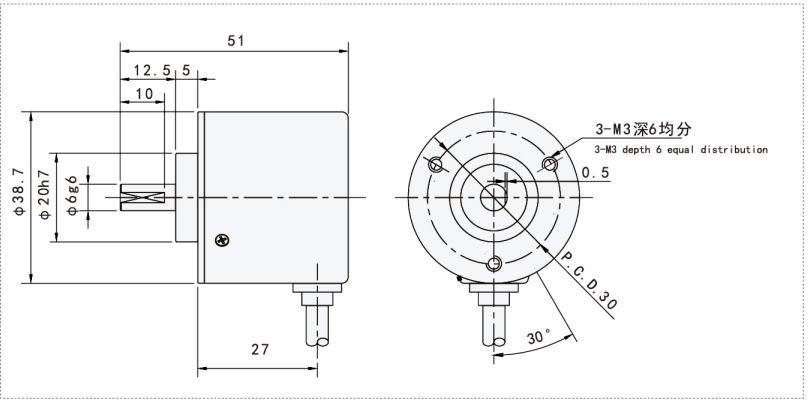

Outline structure | Resolution | Output form | Output signal | Cable | |||
| G:incremental
type |
0:megneto-
electricity |
S:solid shaft | 38:φ38mm | □:φ6mm | A:side outlet rubber | 04:4 outline
structure4 |
10,20,50,
60,100, 200,360, 400,500 600,800, 1000,1024,1200, 2000,2048,2500,3000,3600, 4096 |
T:push pull output
L:5V drive output A:24V drive output |
1Aphase Asignal
2:ABphase AB signal 3:ABZphase ABZ signal 4:phase ABA/B/ signal 5:phase ABZA/B/Z/ signal |
Default
2m line,For non 2m, labeling is sufficient |
|||
| Line color | T output signal | – | Line color | L/A output signal |
| brown | VCC | brown | VCC | |
| blue | GND | |||
| blue | GND | |||
| black | A phase | |||
| black | A phase | white | B phase | |
| orange | Z phase | |||
| white | B phase | |||
| black red | Aphase | |||
| orange | Z phase | white red | Bphase | |
| orange red | Z phase | |||
| shield | F ·G | |||
| shield | F ·G |

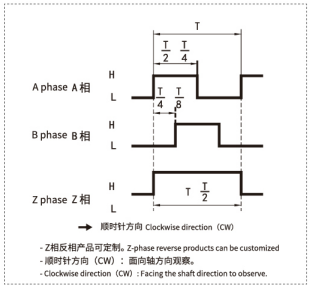

push pull output

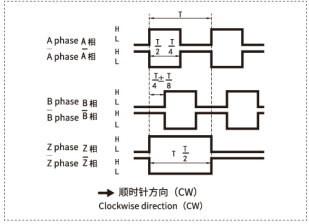

longline drive output
