GLS38AO5 Rotary Encoder

automation machinery,industrial robots,packaging machinery,medical machinery,printing machinery,machine tools,textiles

Completely replacing German HENGSTLER series
The resolurion can be up to:5000 pulses
high temperature resisting,high accuracy,long duration,anti interference

Product Model And Meaning

□

–

1000

–

Contour of
product

Size of main
shaft,shaft hole

Outlet and
sealing form

Outline
structure

Resolution

Output form

Output signal

Cable

38:φ38mm

□:φ6mm
(默认

A:side outlet rubber

05:5 outline
structure5

10,20,50,
60,100,
200,360,
400500,
600,800,
1000,1024,
1200,2000,
2048,2500,
3000,3600,
4096

C: open collector output
F:complementary output
L:5V drive output
A:24V drive outpu

1:Phase A signal 2:
phase AB signal 3:phase ABZ signal
4:phase ABA/B/ signal
6:phase ABZA/B/Z/ signal

Default
2m
line,For
non 2m,
labelingis
sufficient

Wiring Table

Line color	T output signal	–	Line color	L/A output signal
brown	VCC		brown	VCC
			blue	GND
blue	GND
			black	A phase
black	A phase		white	B phase
			orange	Z phase
white	B phase
			black red	Aphase
orange	Z phase		white red	Bphase
			orange red	Z phase
shield	F ·G
			shield	F ·G

Output Phase Difference

push pull output

longline drive output

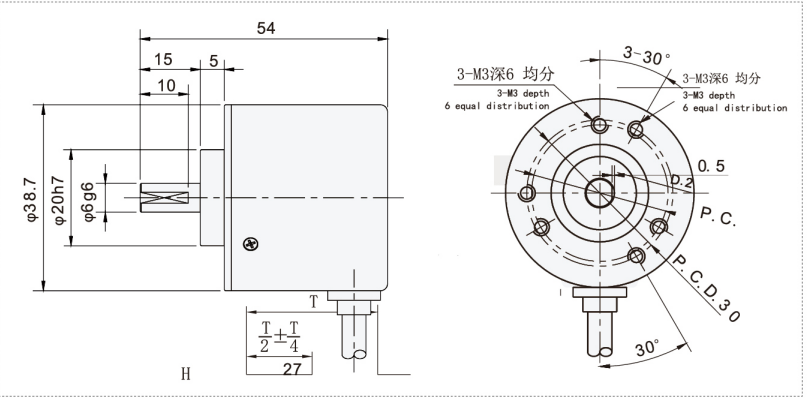

Mechanical Drawings(mm)
