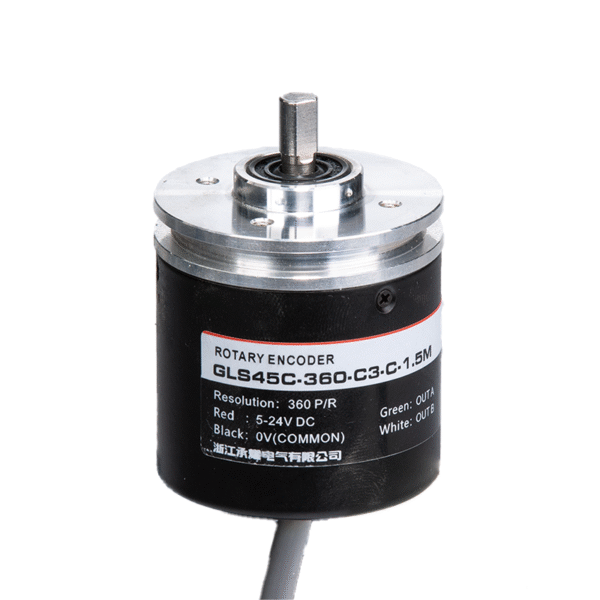

GLS45C Rotary Encoder φ45mm 5000P/R | Textile OEM Encoder Factory

Precision 45mm rotary encoder for industrial position control, especially sock machine applications. Offers 5000P/R resolution, IP64 sealing, and aviation plug connectivity.

Request a Quote

Product Model And Meaning

GLS45 C1000 C3 2M
Category of
product		Type of
product		Form of
main shaft		Contour of
product		Outlet and
sealing form		ResolutionOutput formOutput signalCable
G:incremental
type		L:photoelec-
tricity		S:solid shaft45:φ45mmC:rear outlet10,20,50,60,100,200,360,
400,500,600,800,
1000,1024,1200,2000,2048,2500,
3000,3600,4096		C: open collector
output
F: complementary
output
L:5V drive output		1:phase A signal
2:phase AB signal
3:phase ABZ signal
4:phase ABA/B/
signal
6:phase ABZA/B/Z/
signal		Default
2m
line,For
non 2m,
labeling is
sufficient

Wiring Table

Line colorC/F output signal–Line colorLoutput signal
redVCCredVCC
blackGND
blackGND
greenA phase
greenA phasewhiteB phase
yellowZ phase
whiteB phase
pinkAphase
yellowZ phaseblueBphase
orangeZ phase
shieldF ·G
shieldF ·G

Output Phase Difference

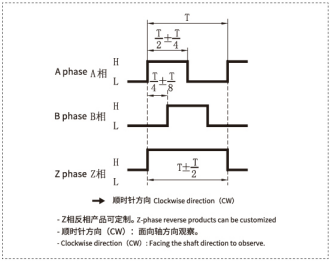

complementary output/NPN collector open circuit output

1 (1)

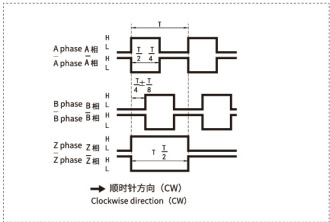

long line drive output

1 (2)

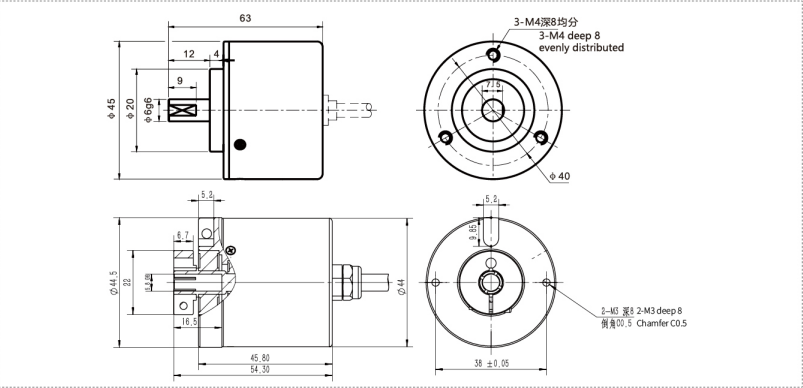

Mechanical Drawings(mm)

1 (3)
