Description
Product Model And Meaning

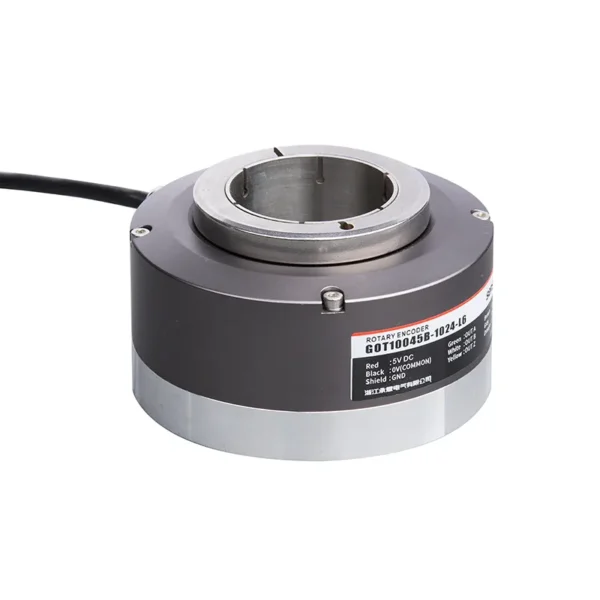

| G | L | T | 100 | 45 | B | 1024 | L | 6 | 2M | |||
| Category of product | Type of product | Form of main shaft | Contour of product | Size of main shaft,shaft hole | Outlet and sealing form | Resolution | Output form | Output signal | Cable | |||
| G:incremental type | L:path optoelec-tronics P:Z-path optoelec- tronics | T:Through- hole shaft | 100: φ100mm | 45:φ45mm(default) 40:φ40mm 38:φ38mm 35:φ35mm 30:φ30mm | B:side outlet metal F:aviation side outlet | 100,200, 360,400, 500,600, 800,1000, 1024,1200, 2000,2048, 2500,4096 | L:5V drive output A:24V drive output | 1:phase A signal 2:phase AB signal 3:phase ABZ signal 4:phase ABA/B/ signal 6: phase ABZA/B/Z/ signal | Default 2m line,For non 2m, labeling is sufficient |
Wiring Table
| Line color | L/A output signal |
| red | VCC |
| black | GND |
| green | A phase |
| white | B phase |
| yellow | Z phase |
| brown | Aphase |
| gary | Bphase |
| orange | Zphase |
| shield | F ·G |
Output Phase Difference
long line drive output
Mechanical Drawings(mm)
