| G | O | H | 38 | A | 02 | 1000 | T | 3 | 2M | ||||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
Size of main shaft,shaft hole | Outlet and
sealing form |

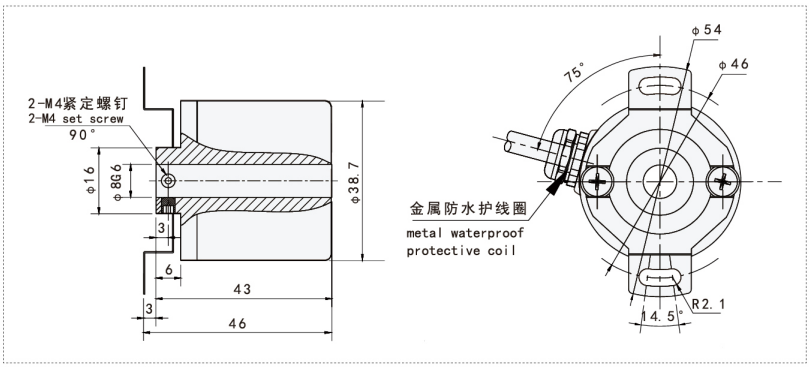

Outline
structure |
Resolution | Output form | Output signal | Cable | |||
| G:incremental
type |
0:megneto- electricity | H:semi-
hollow shaft |
38:φ38mm | □:φ8mm | A:rubber wire
protecton sleeve |
02:2 outline
structure2 |
10,20,50,
60,100, 200360, 400,500, 600800, 1000,1024, 1200,2000, 2048,2500, 3000,3600, 4096等 |
T:push pull output
L:5V drive output A:24V drive output |

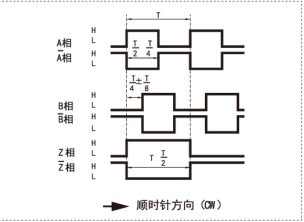

1:phase Asignal
2:phase AB signal 3:phase ABZ signal 4:phase ABA/B/ signal 5:phase ABZA/B/Z/ signal |
Default
2m line,For non 2m, labeling is sufficient |
|||
| Line color | C/F output signal | – | Line color | Loutput signal |
| brown | VCC | brown | VCC | |
| blue | GND | |||
| blue | GND | |||
| black | A phase | |||
| black | A phase | white | B phase | |
| orange | Z phase | |||
| white | B phase | |||
| purple | Aphase | |||
| orange | Z phase | gray | Bphase | |
| yellow | Z phase | |||
| shield | F ·G | |||
| shield | F ·G |
push pull output
long line drive output
