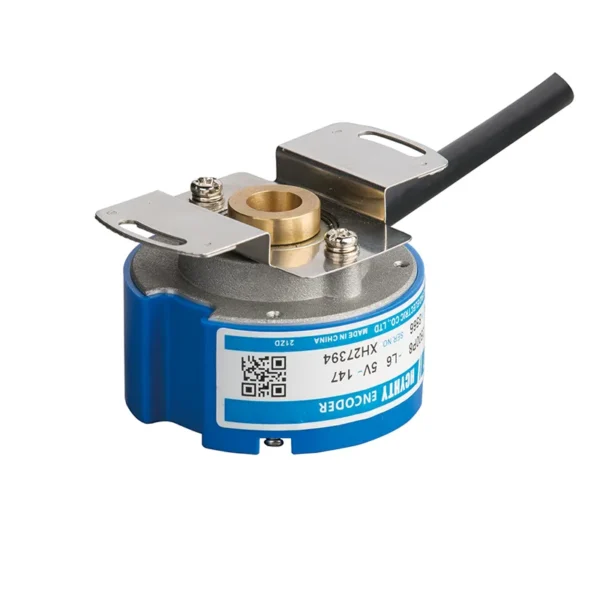

| G | L | T | 48 | □ | 2500 | 8P | 0.21M | |||
| Category of product |
Type of product |
Form of main shaft |
Contour of product |
Size of main shaft,shaft hole |
Resolution | Output form | Cable | |||
| G:incremental type |
L:photoelec- tricity |
T:Through-hole shaft |
48:Φ48mm | □:φ9mm 08:中8mm |
500,1000,1024,2500 | 4P:2 pairs of magnetic poles 6P: 3pairs of magnetic poles 8P:4 pairs of magnetic poles 10P:5 pairs of magnetic poles |
Default 0.21m line,For non 0.21m,labeling is sufficientt |
| Line color | output signal |
| red | Vcc |
| black | 0V |
| green | A phase |
| white | B phase |
| yellow | Z phase |
| brown | U phase |
| gray | V |
| orange | W |
| green black | Aphase |
| white black | B phase |
| yellow black | Z phase |
| brown black | U phase |
| gray black | V phase |
| orange black | W phase |
| shield | F ·G |

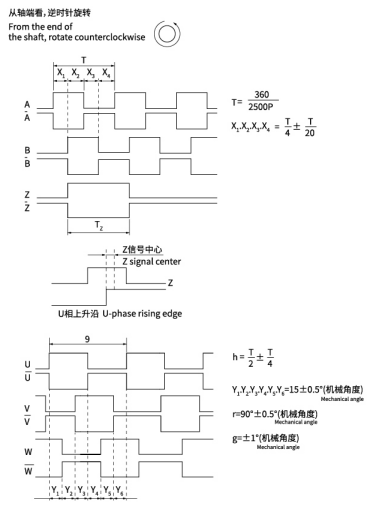

Signal position accuracy:The absolute angle error of phase A,Bis≤0.2T, the period error is ≤0.05T,T=360°/N(N is the number of output pulses per revolution), the period P=360°/N1±1.5°(N1=2,3,4),the phase difference Yn=P/6±1.5°(n=1,2,3,4,5, 6),and the positions of phases A and B with U, V,and Ware not specified;
Relationship between Z-phase and U-phase:C ≤±1 °(mechanical
angle)
