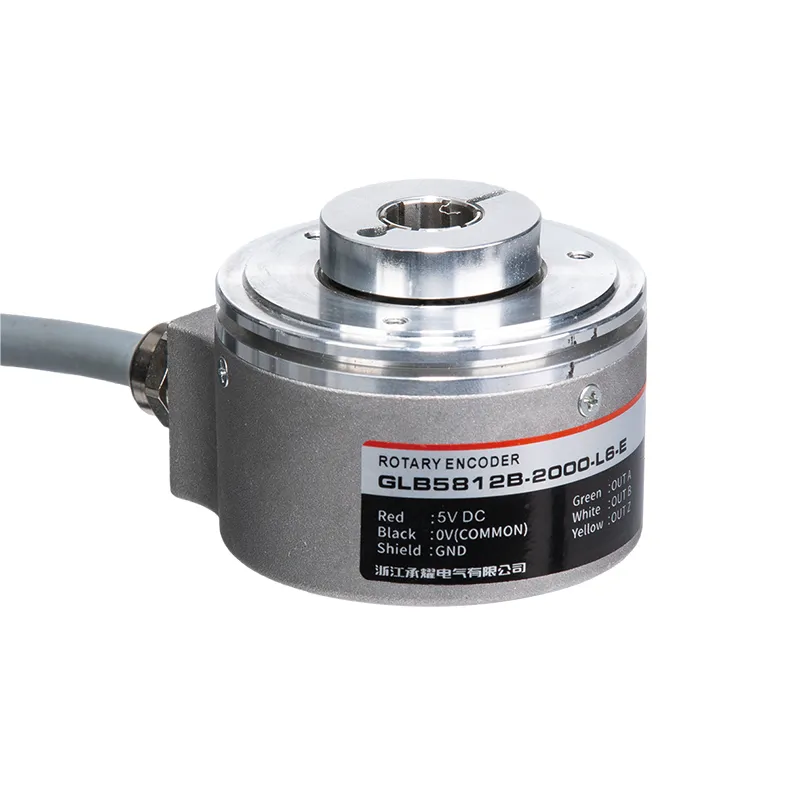

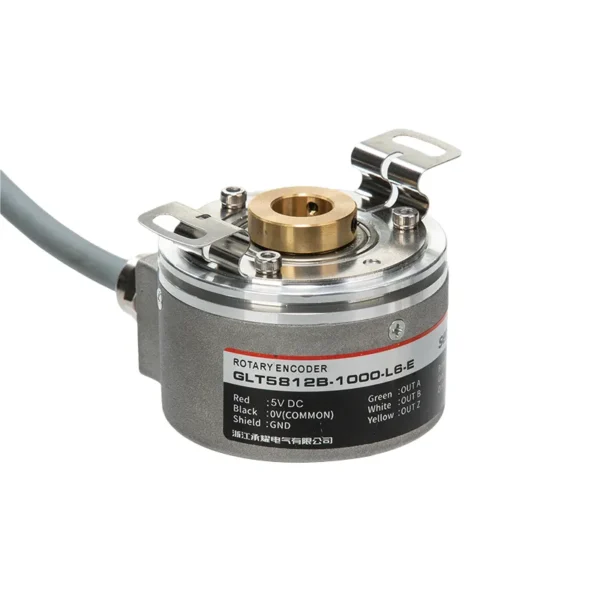

| C | L | T | 58 | 1000 | B | 1000 | L | 6 | 2M | ||||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
Size of main
shaft,shaft hole |
Outlet and
sealing form |
Resolution | Output form | Output signal | Cable | ||||
| G:incremental type | L:photoelec- tricity | T:Through- hole shaft
B:Holding ring for through-hole shaft |
58:φ58mm | 10:φ10mm
12:φ12mm 14:φ14mm 15:φ15mm |
B:side outlet | 10,20,50
60,100, 200,360, 400,500, 600,800, 1000,1024,1 200,2000,20 48,2500,300 0,3600,5000 |
T:push pulloutput
L:5V drive output A:24V drive output |
1:phase A signal
2:phase AB signal 3:phase ABZ signal 4:phase ABA/B/ signal 5:phase ABZA/B/Z/ signal |
Default
2m line,For non 2m, labeling is sufficient |
||||
| Line color | Toutput signal | – | Line color | L/A output signal |
| brown | VCC | – | brown | VCC |
| white | GND | |||
| white | GND | green | Aphase | |
| gray | B phase | |||
| green | Aphase | blue | Z phase | |
| yellow | Aphase | |||
| gray | B phase | pink | Bphase | |
| red | Zphase | |||
| blue | Z phase | purple | U₆Sens | |
| black | GND Sens | |||
| shield | F ·G | shield | F ·G |
