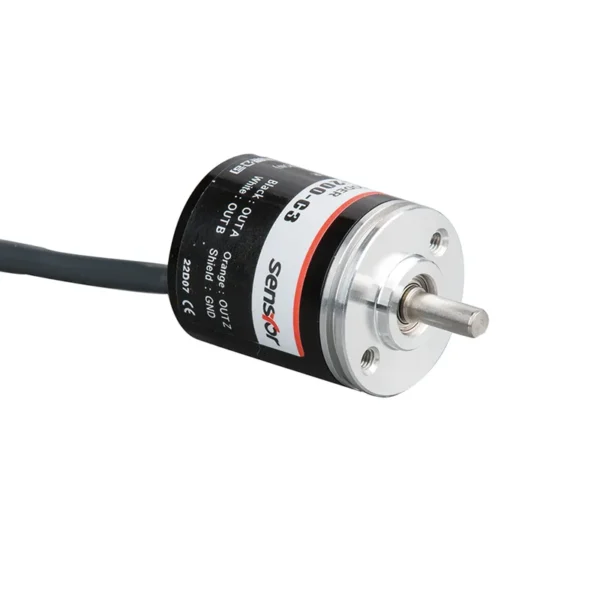

GOS25C Rotary Encoder

Application in the  field  of  automation and  semi-automatic  installation in narrow spaces such as  processing machinery and  packaging machinery
  • Outer diameterφ25mm,shaft diameterφ4mm
  • Enhanced replacement of Japanese  Omron E6A2  series encoders
  • Resolution optional: any number of pulses within 4096
  • Way of output: increase 5V drive differential   output
  • Used in anti-shock,dust etc.severe environments

Product  Model  And  Meaning

G 0 S 25 C 200 C 3
0.7M
Category of
product
Type of
product
Form of
main shaft
Contour of
product
Size of main
shaft,shaft hole
Outlet and
sealing form
Resolution Output form Output signal Cable
G:incremental
type
0magnet-
oelectricity
S:solid shaft 25:φ25mm □ :φ4mm C:rear rubber
cover
10,20,50,
60,100,
200,360,
400,500,
600,800,
1000,1024,1
200,2000,20
48,2500,300
0,3600,4096
C:open collector
output
F:complementary
output
L:5V drive output
1:phase A signal
2:phase AB signal
3:phase ABZ signal4:phase ABA/B/signal
6:phase ABZA/B/Z/
signal
Default
0.7m line,
optional.
For non
0.7m,
labeling is
sufficient

Wiring Table

Line color C/F output signal Line color Loutput signal
brown VCC brown VCC
blue GND
blue GND
black A phase
black A phase white B phase
orange Z phase
white B phase
black red Aphase
orange Z phase white red Bphase
orange red Z phase
shield F ·G
shield F ·G

Output Phase Difference

Output phsae difference1
complementary output/NPN collector open circuit output
Output phsae difference2
Long line drive output

Mechanical Drawings(mm)

Mechanical drawings(mm)
