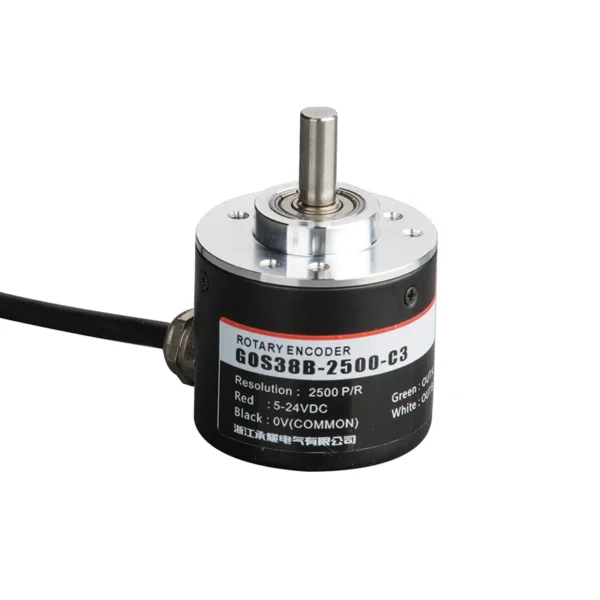

| G | 0 | S | 38 | B | 2500 | C | 3 | 2M | ||||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
Size of main shaft,shaft hole | Outlet and
sealing form |
Resolution | Output form | Output signal | Cable | |||
| G:incremental type | O:megneto-
electricity P:photoelec- tricity |
S: solid shaft | 38:φ38mm | □:φ6mm
08:φ8mm |
B: side outlet metal
D:rear-outlet metal |
10,20,50,
60,100, 200,360, 400,500, 600,800, 1000,1024,1200,200,2048,2500,3000,3600,5000
|
M:analog quantity output
C:open collector output F:complementary output T:push pulloutput L:5V drive output A:24V drive output |

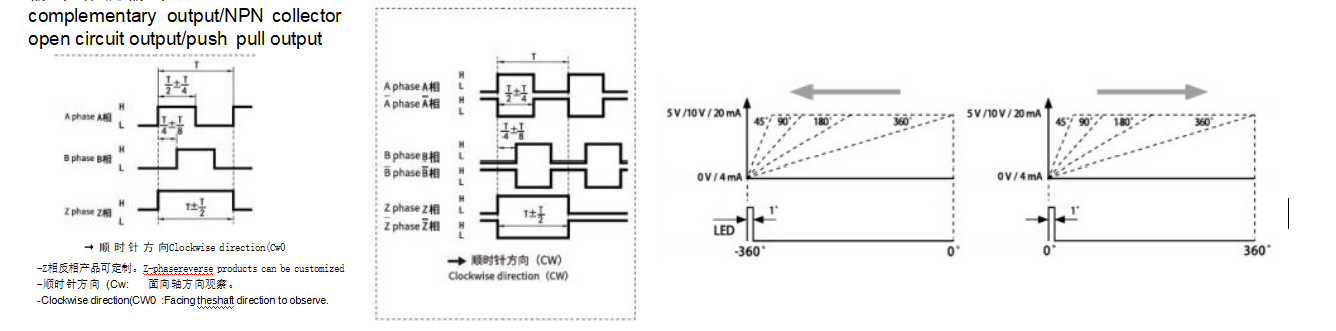

1:phase A signal
2:phase AB signal 3:phase ABZ signal 4:ABA/B/ signal 5: phase ABZA/B/Z/ signal 6:420mA 7:0-5V 8:0-10V |
2Default
2m line,For non 2m, labeling is sufficient |
|||
| Line color | C/F/T output signal | Line color | L/A output signal | Line color | M signal(current) | Line color | M signal(voltage) | |||
| red | Vcc | red | Vcc | Brown | Vcc | Brown | Vcc | |||
| black | 0V | black | 0V | white | 0V | white | 0V | |||
| green | Aphase | green | Aphase | green | 1 | green | +U | |||
| white | B phase | white | B phase | yellow | -1 | yellow | -U | |||
| yellow | Z phase | yellow | Zphase | shield | F ·G | shield | F ·G | |||
| shield | F ·G | brown | A/phase | |||||||
| gray | B/phase | |||||||||
| orange | Z/phase | |||||||||
| shield | F ·G |

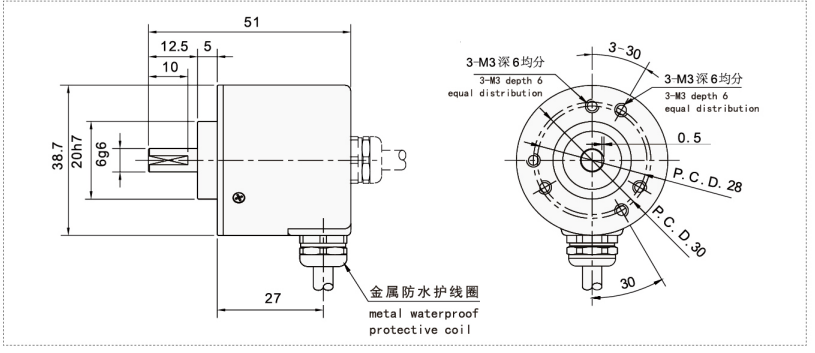

Mechanical drawings(mm)
