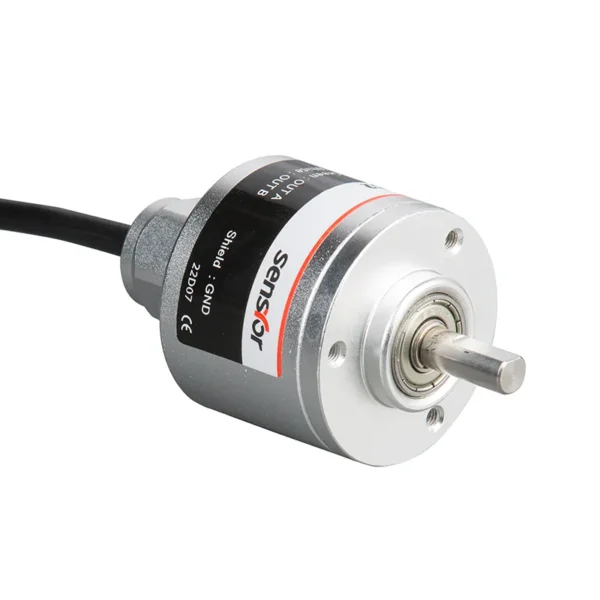

Description
Product Model And Meaning
| G | 0 | S | 38 | D | 1000 | c | 2 | 2M | ||||
| Category of product | Type of product | Form of main shaft | Contour of product | Size of main shaft,shaft hole | Outlet and sealing form | Resolution | Output form | Output signal | Cable | |||
| G:incremental type | 0:磁电 megneto- electricity | S:solid shaft | 38:φ38mm | 口：φ6mm | D:rear-outlet metal | 100, 200,360, 400,500, 600,800, 1000,1024
| C:open collector output F:complementary output | 1:phase Asignal 2:phase AB signal | Default 2m line,For non 2m, labeling is sufficient | |||
Wiring Table
| Line color | C/F output signal |
| red | VCC |
| black | GND |
| green | Aphase |
| white | Bphase |
| shield | F ·G |

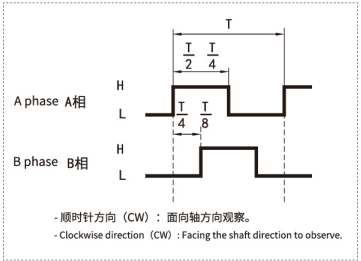

Output Phase Difference
complementary output/NPN collector open circuit output

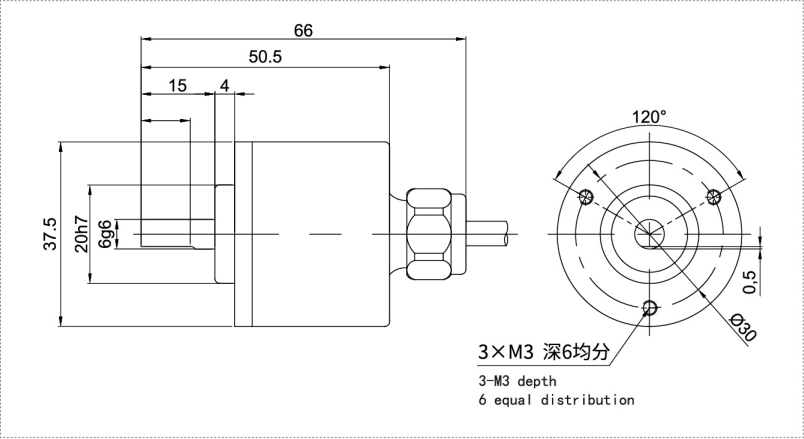

Mechanical Drawings(mm)
