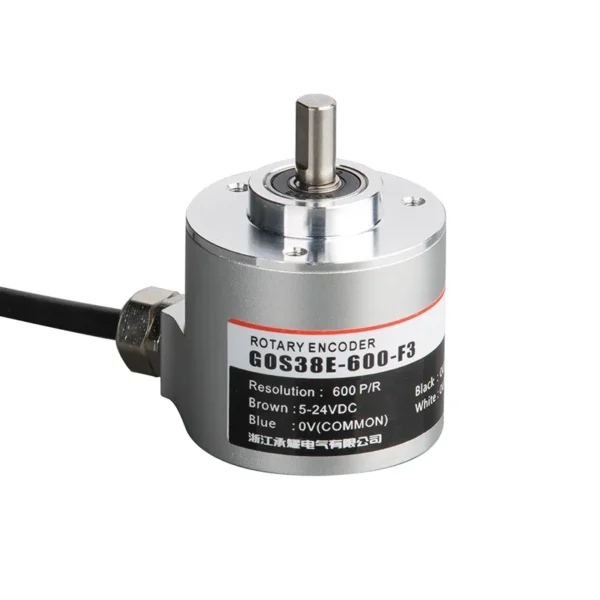

| G | 0 | S | 38 | E | 600 | F | 3 | 2M | ||||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
Size of main
shaft,shaft hole |
Outlet and
sealing form |
Resolution | Output form | Output signal | Cable | |||
| G:incremental
type |
O:megneto-
electricity |
S:solid shaft | 38:φ38mm | □:φ6mm | E:side outlet metal | 10,20,50,
60,100, 200,360, 400,500, 600,800, 1000,1024,1 200,2000,20 48,2500,300 0,3600,5000 |
C:open collector output
F:complementary output T:push pull output L:5V drive output A:24V drive output |
1:phase Asignal

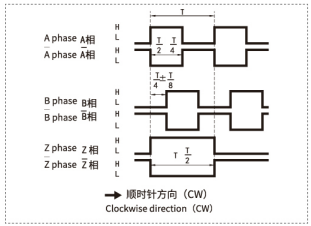

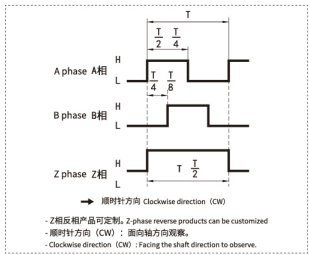

2:phase AB signal 3:phase ABZ signal 4: phase ABA/B/ signal 6:phase ABZA/B/Z/ signal |
Default
2m line,For non 2m, labeling is sufficient |
|||
Line color |
C/F output signal |
– |
Line color |
L/A output signal |
| red | VCC | red | VCC | |
| black | GND | |||
| black | GND | |||
| green | A phase | |||
| green | A phase | white | B phase | |
| yellow | Z phase | |||
| white | B phase | |||
| brown | Aphase | |||
| yellow | Z phase | gray | Bphase | |
| orange | Z phase | |||
| shield | F ·G | |||
| shield | F ·G |
output/NPN collector open circuit output
long line drive output
