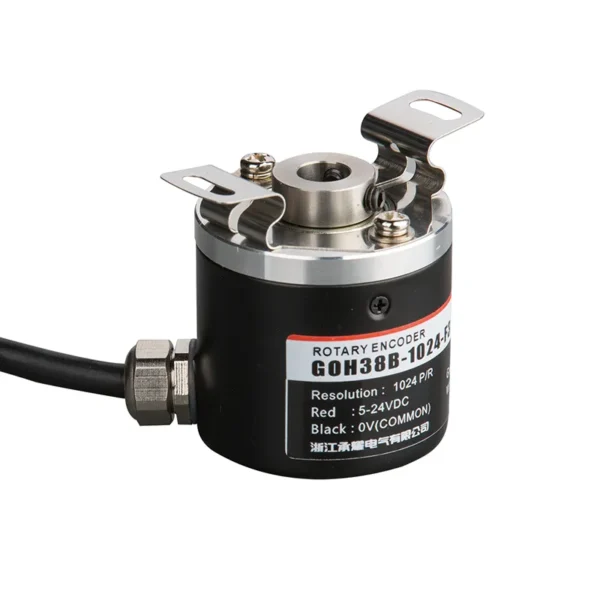

| G | 0 | H | 38 | □ | B | 1024 | F | 3 | 2M | |||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
主轴、轴孔尺寸
Size of main shaft,shaft hole |
出线及密封形式
Outlet and sealing form |
分辨率
Resolution |
输出形式 Output form | Output signal | Cable | |||
| G:incremental type | O:megneto-
electricity L:photoelec- tricity |
H:semi-
hollow shaft |

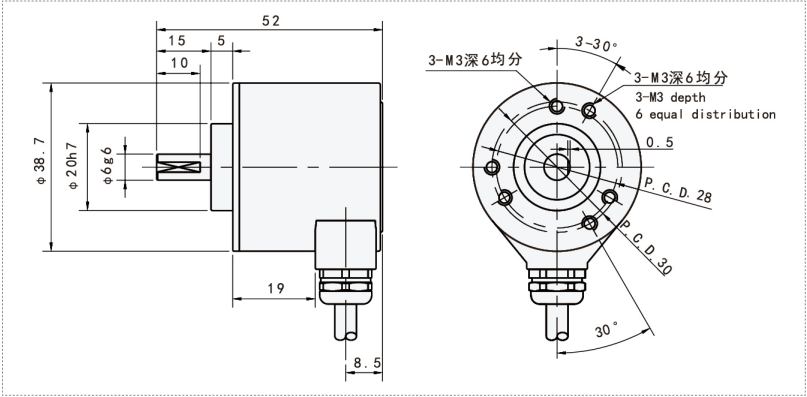

38:φ38mm | □:φ8mm
06:φ6mm |
E:side outlet metal
D:rear-outlet metal |
10,20,50,
60,100, 200,360, 400,500, 600,800 1000,1024,1 200,2000,20 48,2500,300 0,3600,5000 |
C:open collector output
F:complementary output T:push pull output L:5V drive output A:24V drive output |

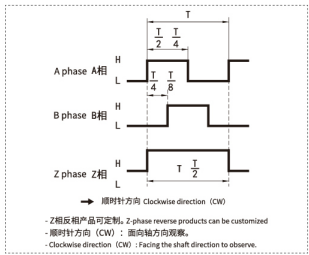

1:phase Asignal
2:phase AB signal 3:phase ABZ signal 4: phase ABA/B/ signal 5:phase ABZA/B/Z/ signal |
Default
2m line,For non 2m, labeling is sufficient |
| Line color | C/F/T output signal | Line color | L/A output signal | |
| red | VCC | red | VCC | |
| black | GND | |||
| black | GND | green | Aphase | |
| green | Aphase | white | B phase | |
| white | B phase | yellow | Z phase | |
| yellow | Z phase | brown | Aphase | |
| gray | B phase | |||
| shield | F ·G | orange | Zphase | |
| shield | F ·G |
output/NPN collector open circuit output
long line drive output
