| G | 0 | s | 30 | C | 200 | C | 3 | 0.7M | ||||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
Size of main shaft,shaft hole | Outlet and
sealing form |
Resolution | Output form | Output signal | Cable | |||
| G:incremental
type |
0:magnet-
oelectricity |
S: solid shaft | 30:φ30mm | □:φ4mm
5:φ5mm |
C: rear rubber
cover |
10,20,50,
60,100, 200,360, 400,500, 600800, 1000,1024,1200,2000,2048,2500,3000,3600,4096 |
C: open collector output
F:complementary output L:5V drive output |
1:phaseAsignal

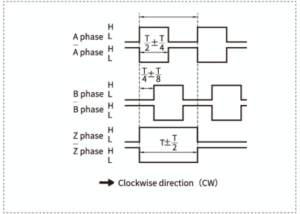

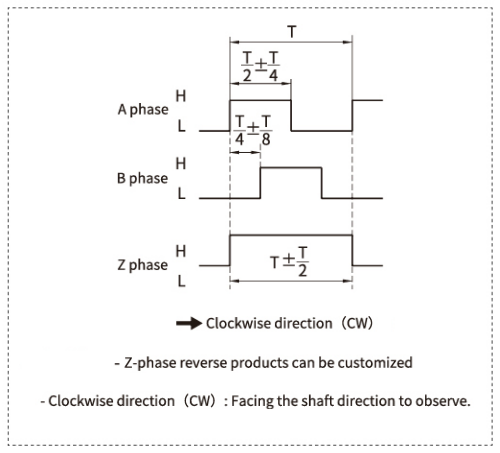

2:phase AB signal 3:phase ABZ signal 4:phase ABA/B/signal 5:phase ABZA/B/Z/ signal |
Default
0.7m line, optional. For non 0.7m, labeling is sufficient |
Line color |
C/F output signal |
– |
Line color |
Loutput signal |
| brown | VCC | brown | VCC | |
| blue | GND | |||
| blue | GND | |||
| black | A phase | |||
| black | A phase | white | B phase | |
| orange | Z phase | |||
| white | B phase | |||
| black red | Aphase | |||
| orange | Z phase | white red | Bphase | |
| orange red | Z phase | |||
| shield | F ·G | |||
| shield | F ·G |
