GOS40A Rotary Encoder φ40mm 10000P/R | Automation OEM Supplier

Versatile 40mm rotary encoder for automation and measurement. OEM replacement for Omron E6B2 series, up to 10000P/R, with 24V linear drive for 150m long-distance transmission.

Request a Quote

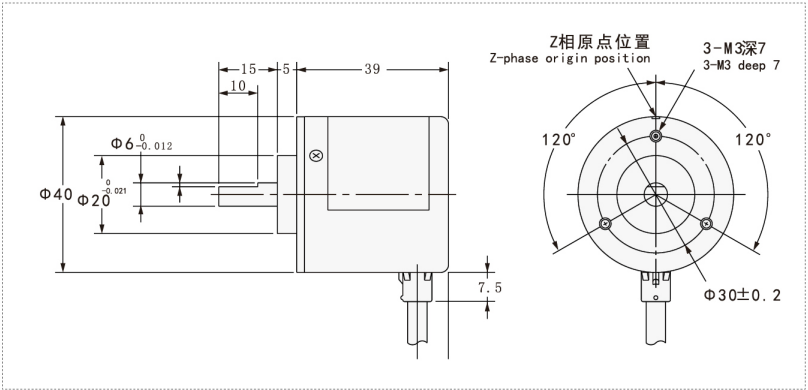

Description

Product Model And Meaning

G

0

S

40

□

A –

1000

C

3

2M

Category of

product

Type of product

Form of

main shaft

Contour of

product

Size of main

shaft,shaft hole

Outlet and

sealing form

Resolution

Output form

Output signal

Cable

G:incremental type

O:megneto- electricity

L:photoelec- tricity

S:solid shaft

40:φ40mm

□:φ6mm

A:side outlet rubber

10,20,50,

60,100,

200,360,

400,500,

600,800,

1000,1024,1

200,2000,20

48,2500,300

0,3600,5000

C:open collector output

F:complementary output

L:5V drive output

A:24V drive output

1:phase Asignal

2:phase AB signal

3:phase ABZ signal

4:phase ABA/B/ signal

5:phase ABZA/B/Z/ signal

Default

2m

line,For non 2m, labeling is

sufficient

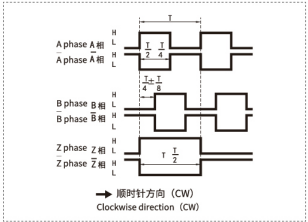

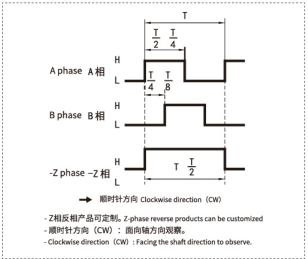

Wiring Table

Line color	C/F output signal	–	Line color	Loutput signal
brown	VCC		brown	VCC
			blue	GND
blue	GND
			black	A phase
black	A phase		white	B phase
			orange	Z phase
white	B phase
			black red	Aphase
orange	Z phase		white red	Bphase
			orange red	Z phase
shield	F ·G
			shield	F ·G
