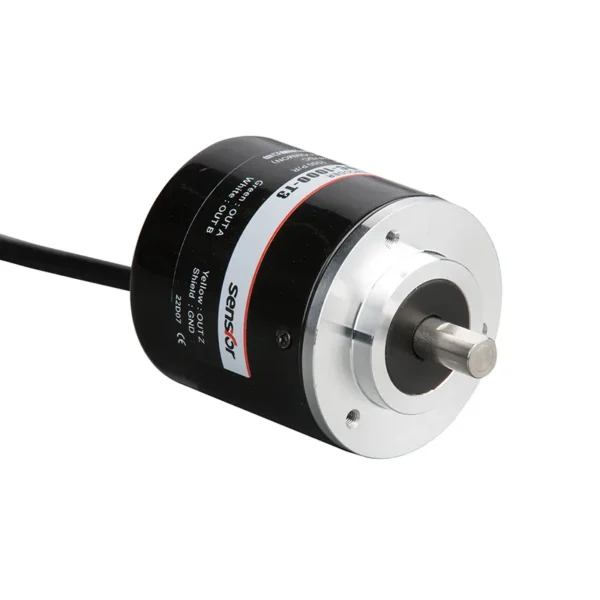

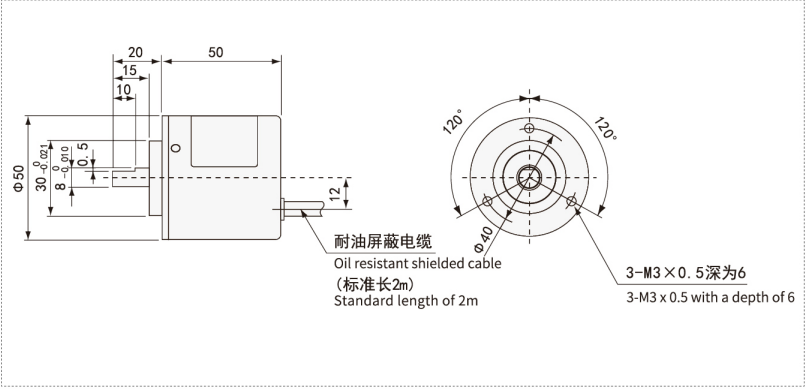

| G | 0 | S | 50 | □ | C | 1000 | T | 3 | 2M | |||
| Category of
product |
Type of
product |
Form of
main shaft |
Contour of
product |
Size of main
shaft,shaft hole
|
Outlet and
sealing form |
Resolution | Output form | Output signal | Cable | |||
| G:incremental type | O:megneto-
electricity L: photoelec– tricity |
S:solid shaft | 50:φ50mm | □:Φ8mm
|
C:rear-outlet rubber | 10,20,50,
60,100, 200,360, 400,500, 600,800, 1000,1024,1 200,2000,20 48,2500,300 0,3600,4096
|
T:
push pull output L: 5V drive output A: 24V drive output |
1:phase Asignal
2:phase AB signal 3:phase ABZ signal 4:phase ABA/B/ signal 5:phase ABZA/B/Z/ signal |
Default
2m line,For non 2m, labeling is sufficient |
| Line color | Toutput signal | Line color | L/A output signal | |
| red | VCC | red | VCC | |
| black | GND | |||
| black | GND | |||
| green | A phase | |||
| green | A phase | white | B phase | |
| yellow | Z phase | |||
| white | B phase | |||
| blue black | Aphase | |||
| yellow | Z phase | white black | Bphase | |
| yellow black | Zphase | |||
| shield | F ·G | |||
| shield | F ·G |

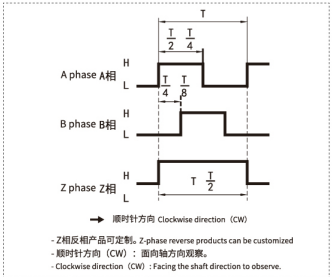

complementary output/push pull output/NPN collector open circuit output

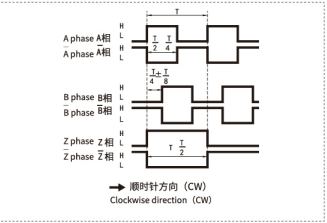

longline drive output
