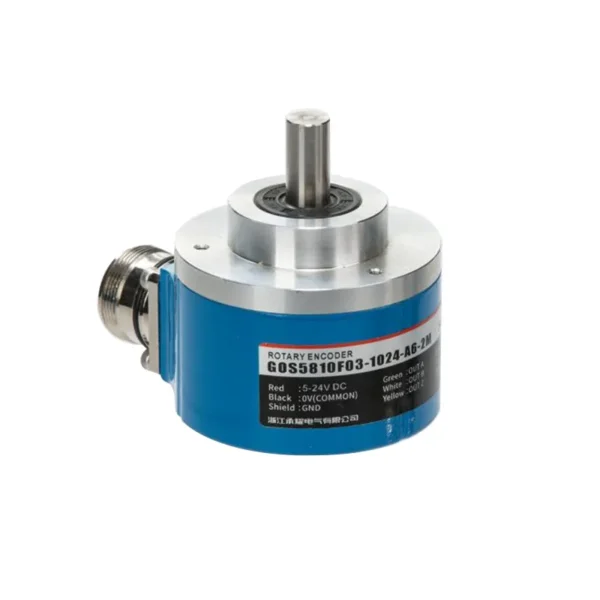

Description
Product Model And Meaning
| G | 0 | S | 58 | 10 | F | 03 | 500 | L | 6 | 2M | ||||
| Category of product | Type of product | Form of main shaft | Contour of product | Size of main shaft,shaft hole | Outlet and sealing form | Outline structure | Resolution | Output form | Output signal | Cable | ||||
| G:incremental type | 0:megneto- electricity L:photoelec- tricity | S:solid shaft | 58:φ58mm | 10:φ10mm | F:Side outlet plug B:side outlet | 03:3outline structure3 | 10,20,50, 60,100, 200,360, 400,500, 600,800, 1000,1024, 1200,2000, 2048,2500, 3000,3600, 5000 | L:5V drive output A:24V drive output | 1:phaseAsignal 2:phase ABsignal 3:phase ABZ signal 4:phase ABA/B/ signal 5:phase ABZA/B/Z/ signal | Default 2m line,For non 2m, labeling is sufficient | ||||
Wiring Table
| Line color | L/A output signal | 12 pin socket model |
| brown | VCC | 2.12 |
| white | GND | 10,11 |
| green | Aphase | 5 |
| gray | Bphase | 8 |
| blue | Z phase | 3 |
| yellow | Aphase | 6 |
| pink | Bphase | 1 |
| red | Zphase | 4 |
| shield | F ·G | F ·G |
Output Phase Difference
long line drive output

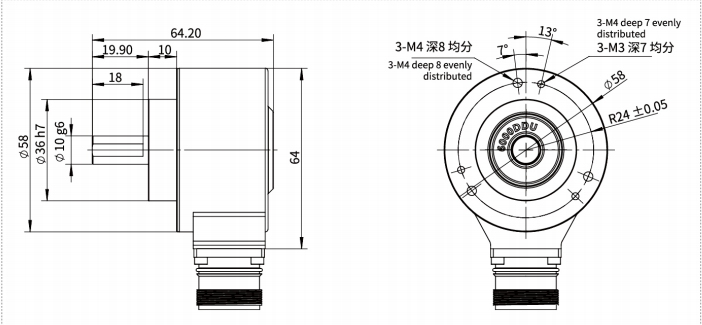

Mechanical Drawings(mm)
