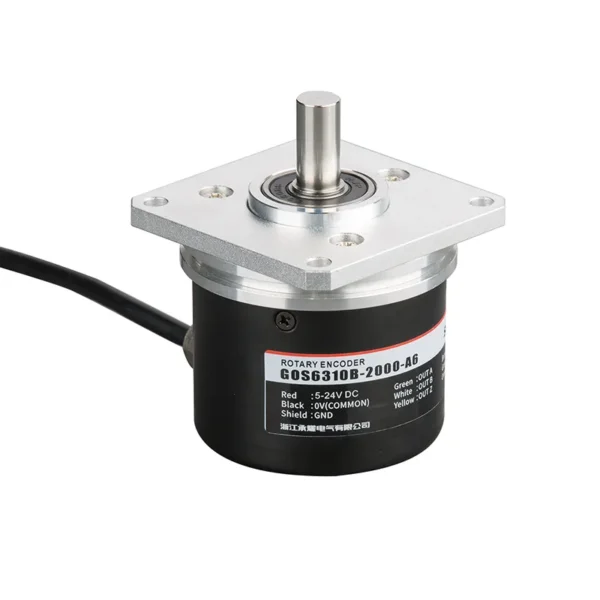

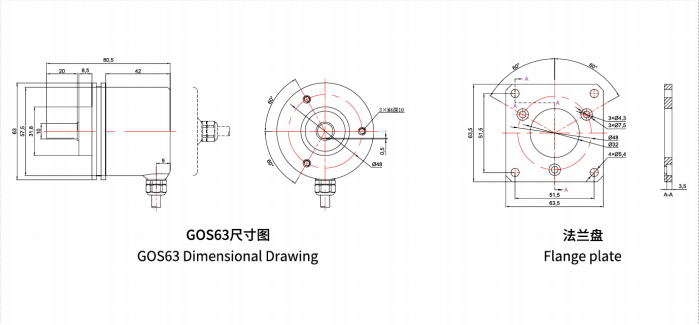

Product Model And Meaning
| G | 0 | S | 63 | 10 | B | 2000 | A | 6 | 2M | |||
| Category of
product |
Type of product | Form of
main shaft |
Contour of
product |
Size of main shaft,shaft hole | Outlet and
sealing form |
Resolution | Output form | Output signal | Cable | |||
| G:incremental type | 0:megneto-
electricity L:photoelec- tricity |
S:solid shaft | 63:φ63mm | 10:φ10mm
15:φ15mm |
B:side outlet metal
F:side outlet socket |
10,20,50
60,100, 200,360, 400,500, 600,800, 1000,1024,1 200,2000,20 48,2500,300 0,3600,5000
|
F:complementary output
L:5V drive output A:24V drive output |
1:phase A signal
2:phase AB signal 3:phase ABZ signal 4:phase ABA/B/ signal 5:phase ABZA/B/Z/ signal |
Default
2m line,For non 2m, labeling is sufficient |
| Line color | F output signal | Line color | L/A output signal | |
| red | VCC | red | VCC | |
| black | GND | |||
| black | GND | |||
| green | A phase | |||
| green | A phase | white | B phase | |
| yellow | Z phase | |||
| white | B phase | |||
| brown | Aphase | |||
| yellow | Z phase | gary | Bphase | |
| orange | Zphase | |||
| shield | F ·G | |||
| shield | F ·G |
complementary output
long line drive output
