Absolute Encoder Rotary: Precise Positioning You Can Trust

Experience unmatched accuracy and reliability with our absolute rotary encoder solutions. Designed for industrial automation, robotics, and demanding applications, our encoders deliver true absolute positioning without the need for reference runs, ensuring every movement is tracked from the first rotation with pinpoint precision.

Key Features & Benefits of Absolute Encoder Rotary

Our absolute rotary encoders deliver true absolute positioning without the need for a reference run. This means no calibration delay when powering up — the exact position is always known.

Core Features

Feature	Benefit
Single-turn & Multi-turn	Covers up to 65,536 turns for precise multi-revolution tracking
High resolution (up to 19-bit)	Ultra-fine angle measurement for tight control
Non-contact sensing	Optical, magnetic, and inductive technologies ensure durability and reliability
Wide temperature range	Operates reliably in harsh environments from low to high temps
IP67/IP68 protection	Dust-tight and waterproof for industrial use
Multiple output interfaces	SSI, BiSS, CANopen, RS485, and analog support for easy integration
Various mounting options	Flexible installation with different shaft and flange types
Low power consumption	Extends device life and reduces energy costs
Long service life	Robust build ensures dependable operation over years

Our magnetic absolute encoder variants are especially robust against dust and vibration, ideal for harsh industrial conditions. The optical models offer the highest accuracy and resolution.Whether you need a single-turn absolute encoder for simple angle measurement or a multi-turn absolute encoder to track several revolutions in robotics or CNC machines, our Sensyor series fits the bill with customizable options.

Explore compatible options like our geared rotary units or wire encoders for specific needs – see examples like the GOS38H rotary encoder for a sturdy optical model.With reliable absolute shaft encoding and advanced sensing tech, you get precise, real-time angle feedback crucial for automation, motion control, and position sensing applications worldwide.

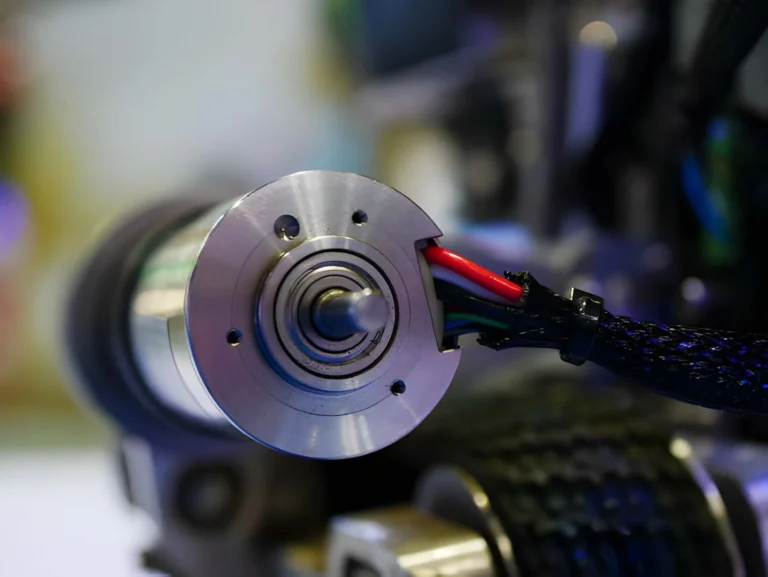

Product Variants / Models

Sensyor offers a range of absolute rotary encoders tailored to fit diverse industrial needs. Our lineup is split into two main series:

Sensyor Single-Turn Absolute Rotary Encoder Series

Resolution: Up to 19-bit high resolution for precise angle measurement
Accuracy: Exceptional repeatability and reliability
Shaft Types: Solid and hollow shaft options to suit installation preferences
Applications: Ideal for precise angle detection, motor feedback, and limited radius rotation

Sensyor Multi-Turn Absolute Rotary Encoder Series

Turns Count: Measures up to 65,536 turns without battery backup
Technology Options: Magnetic and optical sensing for enhanced durability and accuracy
Diagnostics: Built-in health monitoring and diagnostic features for predictive maintenance
Use Cases: Perfect for tracking multiple revolutions in cranes, robotics, and heavy machinery

Feature	Single-Turn Encoder	Multi-Turn Encoder
Resolution	Up to 19-bit	Up to 19-bit per turn
Revolution Count	1 turn	Up to 65,536 turns
Output Options	SSI, BiSS, CANopen, RS485, Analog	SSI, BiSS, CANopen, RS485
Typical Applications	Servo motor feedback, robotics	Wind turbines, material handling
Price Range	Moderate	Higher due to added multi-turn tech

Both product lines are built to deliver true absolute positioning and come with flexible mounting styles and interfaces, giving you an easy fit in your automation projects.

For more insights on how absolute rotary encoders compare to incremental types, you can visit our detailed explanation on the absolute encoder category page.Discover what suits your application best — single-turn or multi-turn — with Sensyor’s robust lineup.

Technical Specifications of Absolute Encoder Rotary

Here’s a clear snapshot of the key specs you need to know about Sensyor’s absolute encoder rotary models. Whether you choose a single-turn or multi-turn absolute rotary encoder, these figures outline their remarkable precision, durability, and versatility.

Specification	Details
Resolution	Up to 19-bit single-turn resolution (524,288 positions per revolution)
Measuring Range	Multi-turn encoders: Up to 65,536 turns
Accuracy	±0.02° typical single-turn accuracy
Repeatability	±0.01°
Output Interfaces	SSI, BiSS, CANopen, RS485, Analog
Electrical Details	Voltage Supply: 5 V DC nominal, range 4.5–30 V DC
Power Consumption	Low power, typically under 100 mA
Shaft Diameter Options	Standard 6 mm, 8 mm, or options for hollow shaft encoders
Flange Types	Round, square, and servo flange options available
Max Speed	Up to 12,000 rpm
Torque	Starting torque less than 5 mNm
Operating Temperature	-40°C to +105°C for industrial use
Vibration Resistance	Up to 55 g, 3-axis
Shock Resistance	Up to 100 g, 6 ms
Protection Class	IP67 and IP68 options available for harsh environments

Downloadable Datasheet

For exact mechanical drawings, detailed electrical pinouts, and advanced specs, download the full datasheet available on our product pages, including the Sensyor GOS38D rotary encoder.

This comprehensive spec list supports your choice of a high-resolution rotary absolute encoder that meets demanding industrial and automation applications. The combination of multi-interface compatibility and rugged design ensures integration ease and lasting performance.

How It Works: Absolute Encoder Rotary Technology

Absolute Encoding Principle

An absolute rotary encoder gives a unique digital code for every shaft position. Unlike incremental encoders, which count steps and need a reference point on startup, absolute encoders know the exact angle immediately after power-up. This makes them ideal for precise, reliable position sensing.

Absolute vs Incremental Encoders

Feature	Absolute Encoder	Incremental Encoder
Position Output	Unique code for each position	Relative position, counts steps
Power Loss Recovery	Retains exact position	Must re-home to zero
Complexity	More complex electronics	Simpler design
Use Cases	Robotics, automation, CNC	Speed measurement, counting

Single-Turn vs Multi-Turn Operation

Single-turn encoders measure shaft position within one full revolution (0 to 360°) with high resolution—up to 19-bit accuracy.
Multi-turn encoders track multiple shaft revolutions (up to 65,536 turns) by combining internal gear counters and batteries or energy-harvesting tech to maintain position across power-offs.

Sensyor Sensing Technologies

Sensyor offers three types of non-contact sensing methods for robust, long-lasting performance:

Magnetic: Highly durable in harsh environments, resistant to dust, dirt, and vibration.
Optical: Provides very high resolution and accuracy using light-based detection.
Inductive: Immune to contaminants, ideal for tough industrial conditions.

Choose the right sensing tech from Sensyor to match your setup’s accuracy, durability, and environmental needs.

For detailed encoder tech and choices, check Sensyor’s 38 Series Rotary Encoder for a deeper dive into sensor types and specs.

Applications of Absolute Encoder Rotary Solutions

Absolute rotary encoders are essential in a wide range of industries, providing precise position feedback and reliable performance. Their true absolute position output makes them ideal for critical applications such as:

Industrial Automation and Robotics: Ensure accurate robotic arm positioning and automated machinery control with high-resolution absolute shaft encoders.
CNC Machines and Tools: Maintain precise tool placement and repeatability using single-turn and multi-turn absolute rotary encoders, crucial for quality manufacturing. For guidance on encoder selection in automation, see our detailed tips on choosing the right absolute linear encoders for CNC or automation.
Servo Motor Feedback: Enhance motor control with real-time absolute angle encoder data to improve efficiency and reduce downtime.
Material Handling, Cranes, and Elevators: Reliable multi-turn rotary encoders track boom and elevator shaft positions, ensuring safety and operational accuracy.
Renewable Energy: Track wind turbine blade angles and solar tracker positions precisely, maximizing energy capture and system efficiency.
Medical and Printing Equipment: Provide smooth and accurate positioning in sensitive equipment where precision is non-negotiable.

Case Highlights:

A manufacturing plant integrated Sensyor’s magnetic absolute encoders into their robotic arms, boosting positioning accuracy by 30%.
Wind farms have benefited from multi-turn absolute encoders to monitor turbine rotation, improving preventive maintenance.

Absolute rotary encoders deliver robust, real-time position sensing across these diverse sectors, proving their value in both heavy-duty and precision applications.

Advantages Over Competitors / Why Choose Sensyor Absolute Encoder Rotary

Choosing Sensyor means opting for absolute rotary encoders that stand out in performance and reliability. Here’s why Sensyor leads the pack:

Feature	Benefit
Durability in Harsh Conditions	IP67/IP68 protection and wide temperature range ensure reliable operation in tough environments like industrial automation and renewable energy sites.
Competitive Pricing with Premium Performance	Get high-resolution single-turn and multi-turn absolute shaft encoders without breaking the budget.
Customizable Options	Tailor resolution (up to 19-bit single-turn), output interfaces (SSI, BiSS, CANopen, RS485, analog), and shaft types to fit your exact needs.
Fast Delivery and Local Support	Quick turnaround times globally, backed by local customer service for smooth integration.
Certified Quality	Fully compliant with CE and RoHS standards, assuring product safety and environmental responsibility.

Sensyor’s rotary absolute encoder range, including magnetic absolute encoders and optical types, gives you the flexibility and reliability to power your applications confidently. Need guidance on choosing the right encoder? Our insights on how to choose the right encoders for your B2B project can help you make an informed decision.

With Sensyor, you get the best blend of durability, customization, and value—perfect for industries needing top-level position sensor rotary solutions.

Installation & Mounting Guide for Absolute Encoder Rotary

Installing your absolute rotary encoder is simple when you follow these clear steps:

Prepare the Mounting Surface Make sure the shaft and motor flange are clean and free of debris. Check alignment to avoid strain on the encoder shaft.
Select Compatible Couplings and Flanges Use suitable couplings and flanges that match your encoder shaft size and motor output. Sensyor offers a variety of mounting accessories like torque arms and flange adapters designed to minimize vibration and shaft loading. Explore our range of coupling series for compatible options.
Secure the Encoder on the Shaft Slide the absolute shaft encoder carefully onto the motor shaft, ensuring proper fit. Tighten set screws or clamping hubs evenly to prevent slipping without over-torquing.
Attach Torque Arms if Needed For rotary absolute encoders in high-vibration or heavy-torque applications, install torque arms to stabilize and protect the device.
Connect Wiring for Your Interface Follow wiring diagrams specific to your encoder’s output interface—SSI, BiSS, CANopen, RS485, or analog. Proper shield grounding and cable routing reduce electrical noise and ensure signal integrity.
Test and Calibrate Power on the system and verify encoder signals with your controller or PLC. Check zero position and range accuracy before full operation.

For wire-type absolute rotary encoders, such as the Sensyor LX115S series, installation involves cable routing tips and attachment methods particular to wire outputs. You can review detailed guides with wiring schematics by checking out our LX115S wire type encoder page.By adhering to these steps, you maximize the lifespan and accuracy of your high-resolution rotary absolute encoder in any industrial setup.

FAQs: Single-Turn vs Multi-Turn, Battery, Integration & Lifespan

Difference Between Single-Turn and Multi-Turn Absolute Rotary Encoders

Battery Requirements for Multi-Turn Absolute Shaft Encoders

Some multi-turn rotary encoders use batteries or supercapacitors to keep track of turns during power loss.
Sensyor’s advanced multi-turn models feature battery-free or energy-harvesting technology, reducing maintenance.

Integration with PLCs/Controllers

Supports common interfaces like SSI, BiSS, CANopen, and RS485 for easy PLC integration.
Compatible with most industrial controllers for seamless setup.
Wiring and setup guides help smooth installation.

Expected Lifespan of Absolute Rotary Encoders

Typical lifespan exceeds 10 million shaft revolutions for Sensyor encoders.
Non-contact sensing technologies (magnetic, optical, inductive) ensure wear-free operation.
Designed for harsh industrial environments with IP67/IP68 protection.

Feel free to explore our installation guides and mounting accessories to ensure proper setup and longevity.

To get the most out of your absolute encoder rotary system, make sure to check out our range of related products and accessories tailored for easy installation and optimal performance:

Mounting Brackets and Couplings: Secure and align your rotary absolute encoder reliably with our sturdy mounting brackets and flexible couplings designed for various shaft types and sizes.
Cables and Connectors: Choose high-quality, shielded cables and connectors that ensure stable signal transmission for your magnetic absolute encoder or optical absolute encoder setups.
Incremental Encoders for Comparison: If you want to compare or integrate, explore our incremental encoders like the GLT8030B rotary encoder—great for applications where relative positioning fits better.

These accessories complement both single-turn and multi-turn absolute shaft encoder models, ensuring you have everything needed for your industrial absolute encoder projects.

Get Started with Your Absolute Encoder Rotary Solution

Ready to find the perfect absolute rotary encoder for your application? Use our easy-to-use encoder configuration tool to tailor options like resolution, shaft type, and interface to fit your exact needs. For more complex requirements or custom designs, don’t hesitate to contact our sales team for personalized solutions—we’re here to help you pick the right single-turn or multi-turn absolute encoder.

Stay updated with the latest products, technical tips, and industry insights by signing up for our newsletter. Get the most out of your absolute encoder rotary investments with expert advice straight to your inbox!

Footer / Trust Elements

At Sensyor, we back every absolute encoder rotary product with comprehensive certifications and warranty coverage, ensuring you get reliable, high-quality solutions. Our rotary absolute encoders meet CE and RoHS standards, reflecting our commitment to safety and environmental responsibility.Need help? Our friendly support team is just a message away via live chat or phone. You can quickly reach out for technical advice, installation assistance, or custom solutions tailored to your needs.

For your convenience, we provide easy access to downloadable datasheets and CAD files, offering detailed specs and mechanical drawings to simplify your design and integration process. Don’t forget to explore our blog for the latest insights and tips on absolute shaft encoders and related technologies.With Sensyor, you get trusted industrial absolute encoders backed by expertise, support, and all the resources you need.
