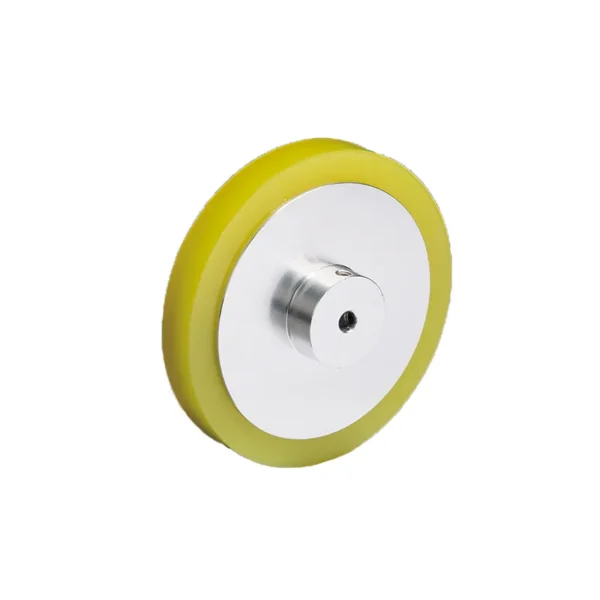

Product Model And Significance
| 01 | 200 | 06 | (10) | U | ||
| Silicone wheel | Circumference(outer diameter)(mm) | Inner aperture 06:6mm 08:8mm 10:10mm Customizable | Slicone thickness (10):10mm (15):15mm (20):20mm | Whee form Blank:General U:U-shaped wheel V:V-shaped wheel | ||
| 100(φ31.8) 150(φ47.8) 200(φ63.7) 250(φ79.5) 300(φ95.5) 94.2(φ30) 125.7φ40) 157(φ50) | 188.5(φ60) 213.7(φ68) 220(φ70) 251.3(φ80) 282.8(φ90) 314.2(φ100) 408(φ130) Customizable | |||||
Mechanical Drawings(mm)

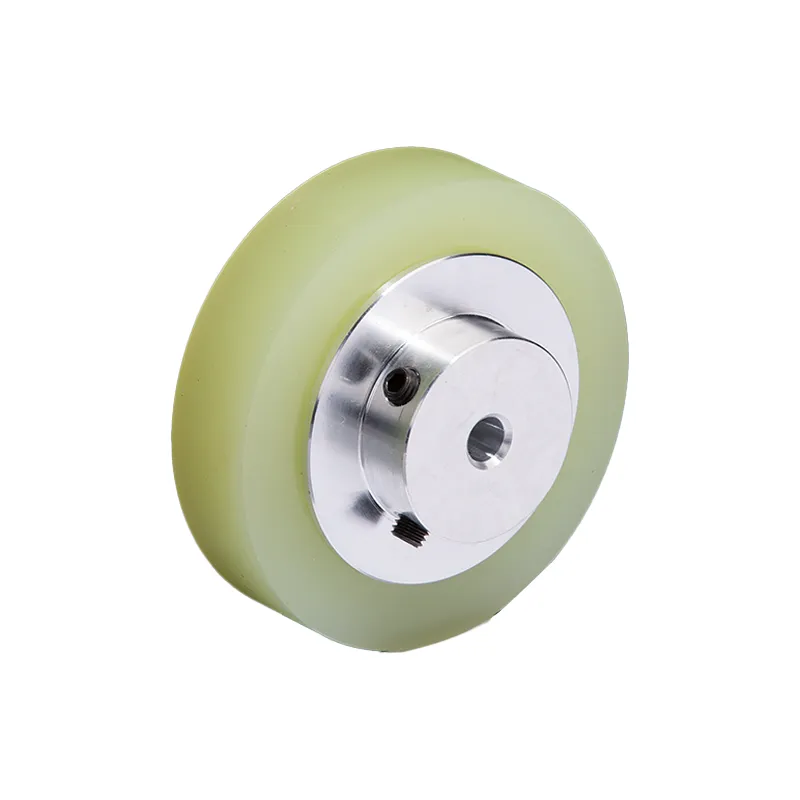

01-15
| No. | A size(Outer diameter of wheel) | B size(wheel thickness) | C size(wheel inner hole size) |
| 1 | perimeter 200mm | 15mm | 6.0/8.0/10.0mm |
| 2 | Customizable | ||

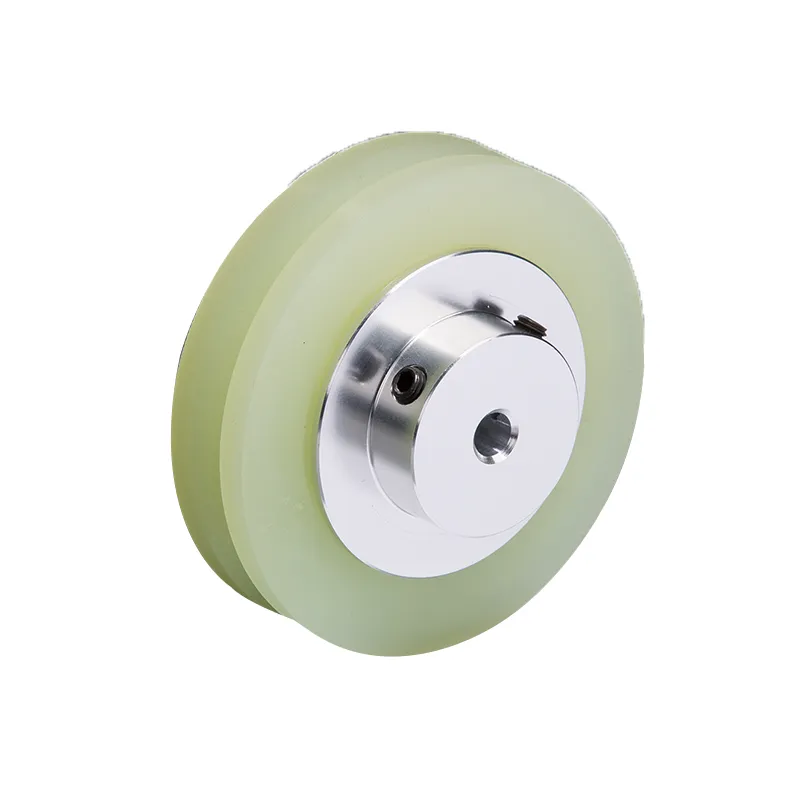

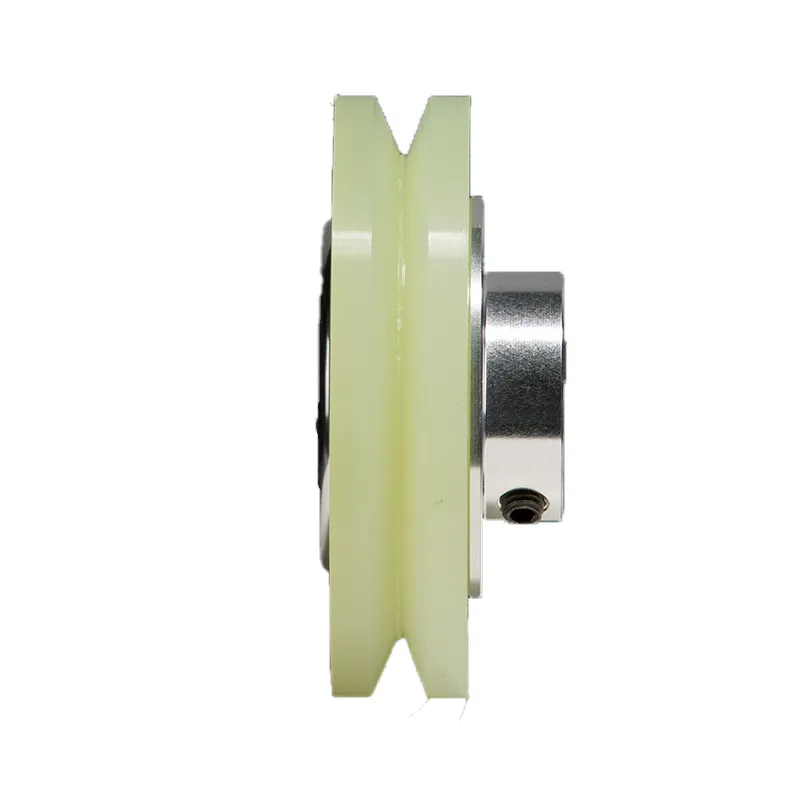

01-V
| No. | A size(Outer diameter of wheel) | B size(wheel thickness) | C size(wheel inner hole size) |
| 1 | φ67.5mm | 15mm | 6.0/8.0/10.0mm |
| 2 | Customizable | ||

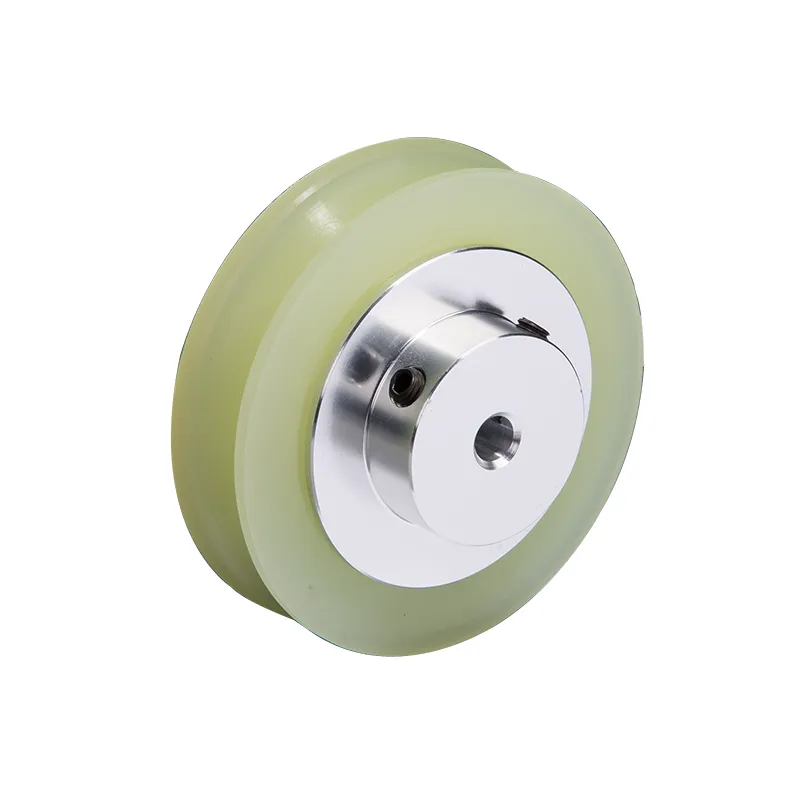

01-U
U-shaped rubber wheel with a thickness of 15mm
| No. | A size(Outer diameter of wheel) | B size (wheel thickness) | C size (minimum inner diameter) | D size(wheel inner hole size) |
| 1 | perimeter 200mm | 15mm | φ54mm | 6.0/8.0/10.0mm |
| 2 | φ67.5mm | 15mm | φ60mm | 6.0/8.0/10.0mm |
| 3 | Customizable | |||
U-shaped rubber wheel with a thickness of 20mm
| No. | A size(Outer diameter of wheel) | B size(wheel thickness) | C size(wheel inner hole size) |
| 1 | perimeter 200mm | 20mm | 6.0/8.0/10.0mm |
| 2 | φ67.5mm | 20mm | 6.0/8.0/10.0mm |
| 3 | Customizable | ||
