Description

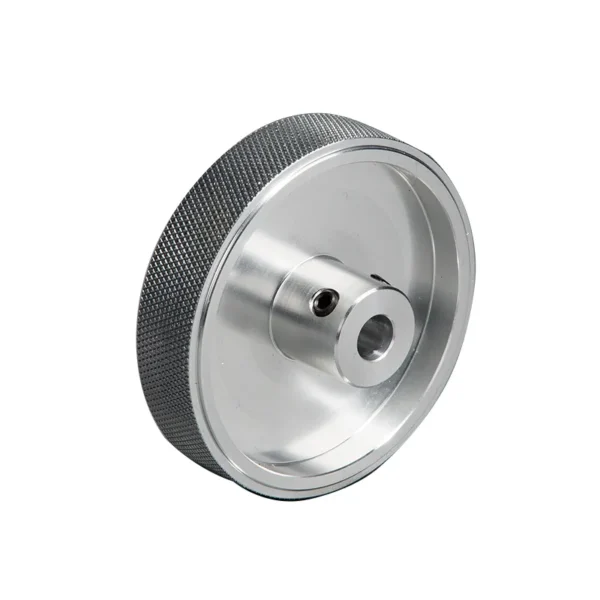

Product Model And Significance
| 03 | 200 | 06 | (15) | U | |
| metal wheels | Circumference | Inner aperture | Wheel thickness | Wheel form | |
| 200mm | 06:6mm 08:8mm 10:10mm Customizable |
(15):15mm | Blank:Regular knurling U:U-shaped wheel V:V-shaped wheel H:H-shaped wheel |
Mechanical Drawings(mm)
| No. | A size(Outer diameter of wheel) | B size(wheel thickness) | C size(wheel inner hole size) |
| 1 | perimeter 200mm | 15mm | 6.0/8.0/10.0mm |
| 2 | Customizable | ||
Accessories

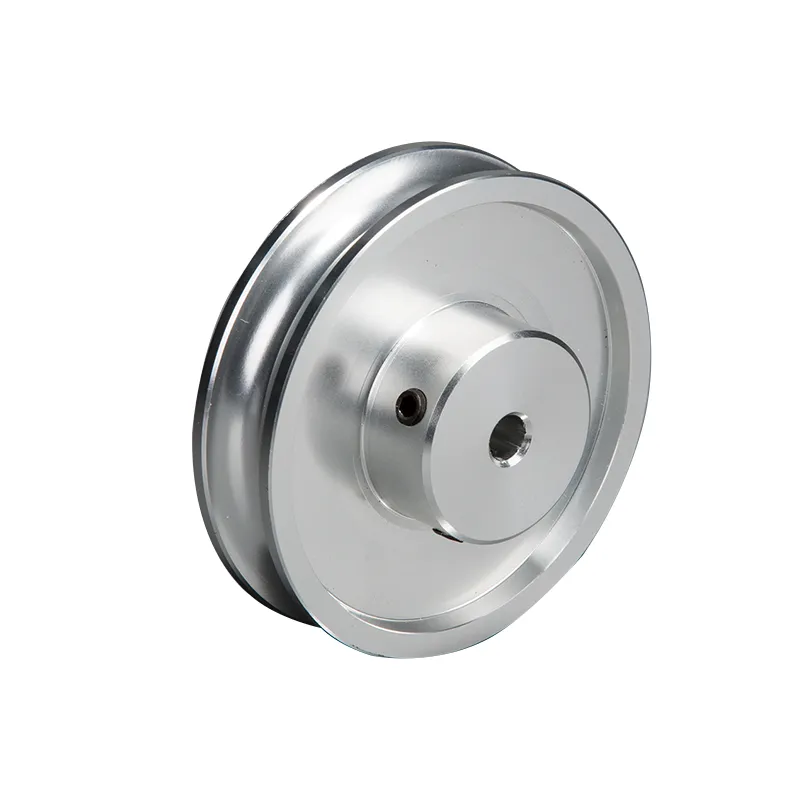

U-shaped metal knurling
| No. | A size(Outer diameter of wheel) | B size(wheel thickness) | C size(wheel inner hole size) |
| 1 | perimeter 200mm | 15mm | 6.0/8.0/10.0mm |
| 2 | Customizable | ||

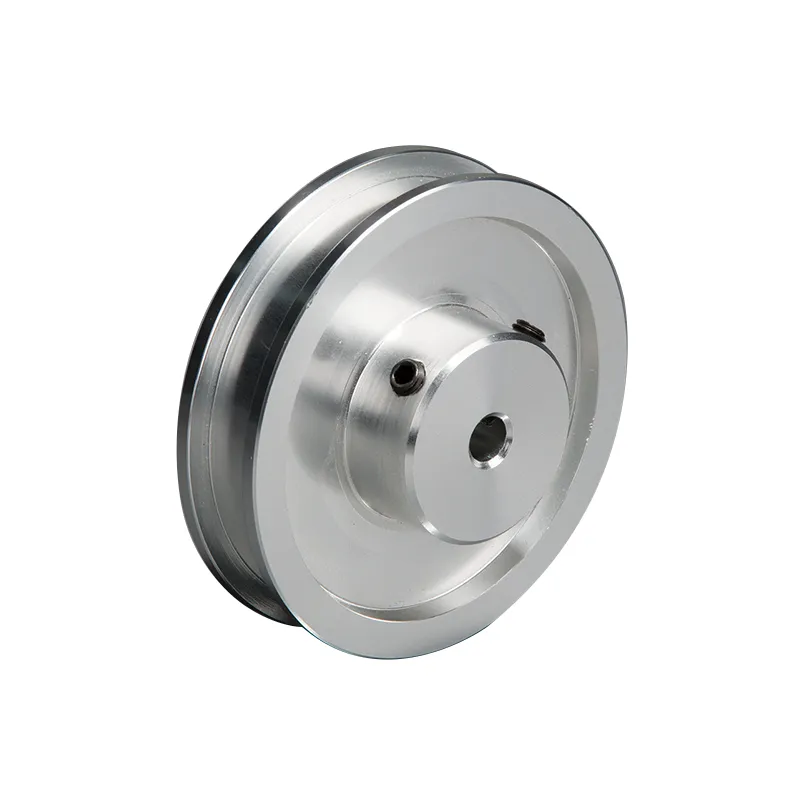

H-shaped metal knurling
| No. | A size(Outer diameter of wheel) | B size(wheel thickness) | C size(wheel inner hole size) |
| 1 | perimeter 200mm | 15mm | 6.0/8.0/10.0mm |
| 2 | Customizable | ||

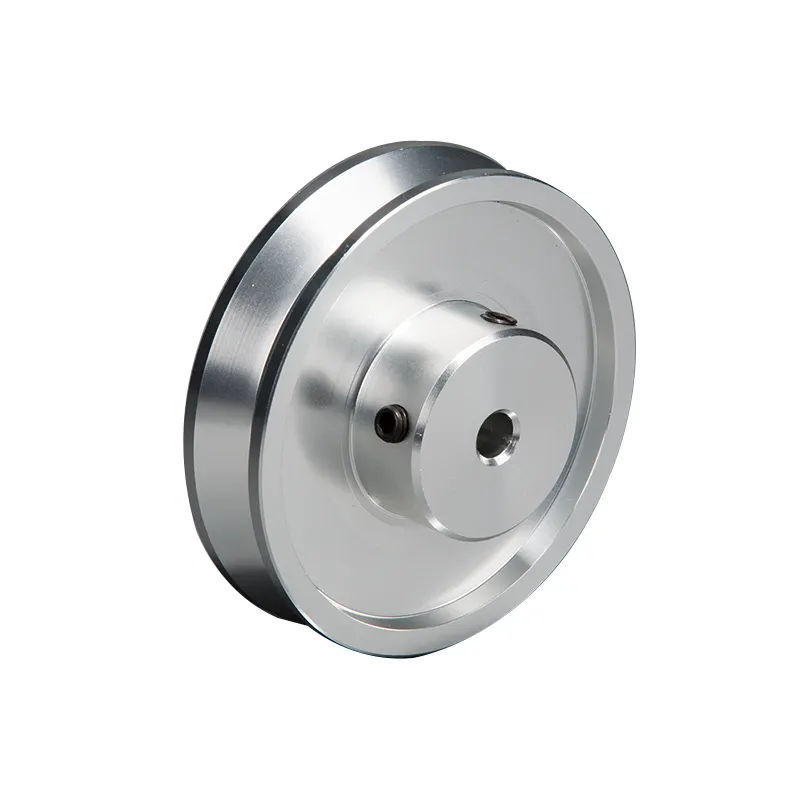

V-shaped metal knurling
| No. | A size(Outer diameter of wheel) | B size(wheel thickness) | C size(wheel inner hole size) |
| 1 | perimeter 200mm | 15mm | 6.0/8.0/10.0mm |
| 2 | Customizable | ||
