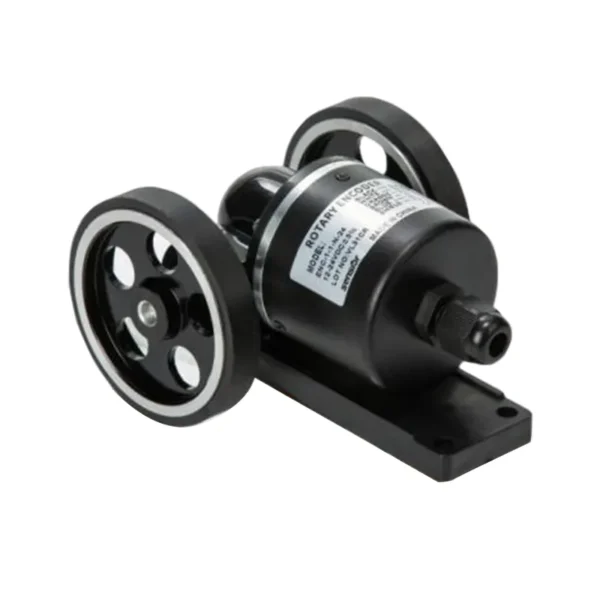

ENC Wheel Type Rotary Encoder

Purpose:Lifting machinery,packaging machinery,aerospace,medical equipment and other fields Mainly used for woodworking machinery,textile machinery,etc.

Wheel shaped detection structure,suitable for measuring the length and speed of continuously moving objects
The output waveform of the detection distance is proportional to the international unit of measurement(meters/inches)
Power supply voltage:5VDC=5%,12-24DC=5%

Product Model And Meaning

ENC

Product category

Output phase

Minimum

measurement unit

Output form

voltage

Cable length direction

Wheel type

1:AB two-phase

1:1mm

2:1cm

3:1m

4:0.01yd

5:0.1yd

6:1yd

N:NPN open collector output

T:push pull output

5:5VDC±5%

24:12-24VDC±5%

Standard 2-meter cable

C:Wiring lead out

connector type

Map Of Circuit

The output circuits of each output phase are the same

push pull output

NPN collector open circuit output

Output Waveform

-When facing the axis,when rotating to the right,it is clockwise(CW).

-Phase difference between Aand B: (T=1 cycle of A) Rear wire lead out type

Mechanical Drawings(mm)

Minimum measurement unit[/pulse]	The circumference of the roller	Number of pulse/l cycle the roller		Reduciton ratio
1mm	250 mm		250	1:1
1cm			100	4:1
1m			1	4:1
0.01yd	228.6 mm (0.25yd)		100	4:1
0.1yd			10	4:1
1yd			1	4:1
