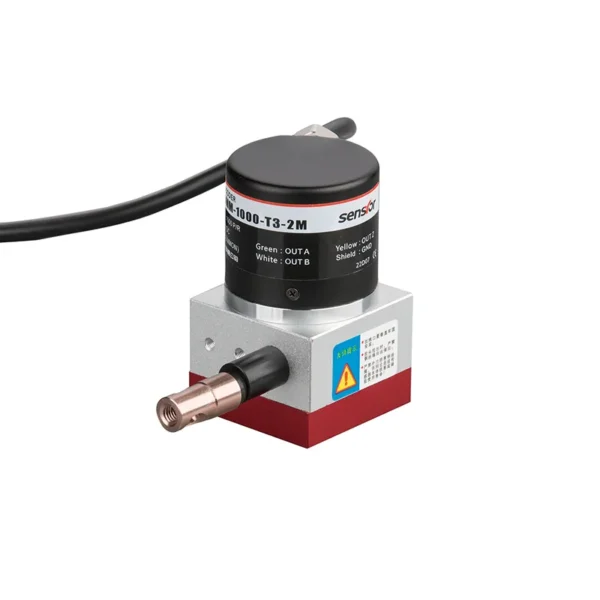

LX40S Wire Encoder for Industrial OEM Applications
Compact wire-type encoder for hydraulic cylinder stroke, crane hoist, gate opening, and automated warehouse detection. Sturdy, corrosion-resistant shell with multiple output options for precise measurement.
- Measurement Range: Up to 1000 mm (customizable)
- Output Signal: Incremental / Analog options available
- Protection Level: IP65 or higher for industrial environments
- Operating Temperature: -20°C to +80°C
Product Description
The LX40S wire-type encoder is a high-precision linear displacement sensor designed for industrial measurement and motion control systems. As a reliable encoder solution, it converts mechanical movement into accurate electrical signals, enabling real-time position monitoring and feedback.
This encoder is widely used in hydraulic cylinders, cranes, and other heavy-duty machinery where precise stroke measurement is critical. It is particularly suitable for industrial users, electrical contractors, and distributors seeking durable and customizable OEM sensor solutions.
Built for demanding environments, the LX40S encoder delivers stable performance even under vibration, dust, and harsh operating conditions. As a professional manufacturer and supplier, we provide OEM/ODM customization, wholesale pricing, and flexible configurations to meet various project requirements.
Key Features:
- High-precision measurement for linear displacement
- Durable wire mechanism for long service life
- Compact design for easy integration in OEM systems
- Customizable output signals and mounting options
Product Model And Meaning
| LX40S | 1000 | 24 | F | 0.5M | 2G | 2 | |||
| Pulse count(resolution) | voltage | Output form | Measuring stroke | Cable length direction | Pulling style | ||||
| 1000:1000BM(0.05) 2000:2000BM(0.025) 2500:2500BM(0.02) 5000:5000BM(0.01) Other | 05:5V 12:12V 24:24V 526:5-26V | C:open collector output F:complementary output T:push pull output L:5V drive output A:24V driveoutput
| 0-600mm | 2G:2-meter cable side outlet 2E:2-meter cable rear outlet 2-meter standard cable configuration Optional length | 1:Cylindrical shape
2:Circular ring shape
3:Zipper style
4:Lock buckle type
|
Wiring Table
| Line color | C/F/Toutput signal | Line color | L/A output signal | |
| red | VCC | red | VCC | |
| black | GND | |||
| black | GND | |||
| green | A phase | |||
| green | A phase | white | B phase | |
| yellow | Z phase | |||
| whith | B phase | |||
| brown | Aphase | |||
| yellow | Z phase | gray | Bphase | |
| orange | Zphase | |||
| shield | F ·G | |||
| shield | F ·G |
Mechanical Parameters
| Measurement stroke
| 0-600mm | Hub circumference
| 50mm |
| Shell material | aluminum alloy,surface anti- static interference,non-conductive | Duration | More than 2 million times |
| Steel wire rope | 0.6mm high flexibility imported coated steel wire rope | Stay wire at outlet | 5N |
| Linear accuiracy | 0.05%FS | Repeated accuracy | 0.01% |
| Resolution | 0.1,0.05,0.025,0.02,0.01, Other | Maximum round- trip speed | 600mm/s |
Electrical Parameters
| Output signal | push pull,drive output | Working voltage | 5V,12V,24V |
| Number of pulse | 100-5000 pulses | Cable length | 2M(standard configuration), customizable |
| Protection | anti-wrong connection, with overload | Outlet direction | Radial(standard);axial |
Mechanical Drawings(mm)
