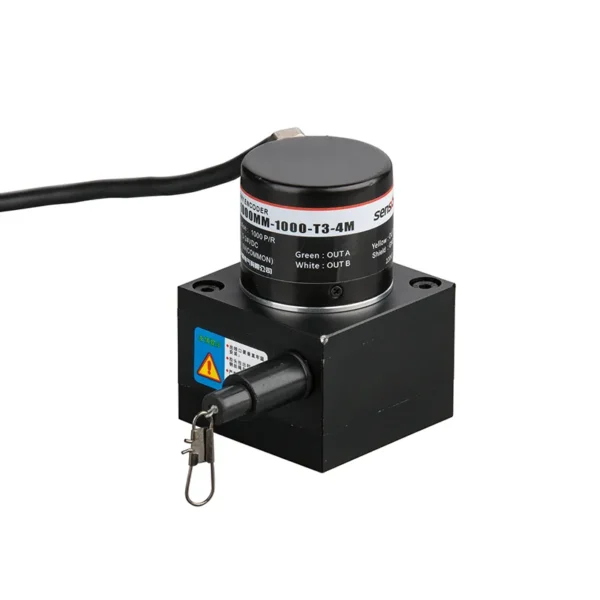

Description
Product Model And Meaning
| LX50S | 1000 | 24 | F | 1M | 2G | 2 | |||
| Pulse count(resolution) | voltage | Output form | Measuring stroke | Cable length direction | Pulling style | ||||
| 1000:1000BM(0.05) 2000:2000BM(0.025) 2500:2500BM(0.02) 5000:5000BM(0.01) Other | 05:5V 12:12V 24:24V 526:5-26V | C:open collector output F:complementary output T:push pull output L:5V drive output A:24V driveoutput
| 2G:2-meter cable side outlet 2E:2-meter cable rear outlet 2-meter standard cable configuration Optional length | 1:Cylindrical shape
2:Circular ring shape
3:Zipper style
4:Lock buckle type
|
Wiring Table
| Line color | C/F/Toutput signal | Line color | L/A output signal | |
| red | VCC | red | VCC | |
| black | GND | |||
| black | GND | |||
| green | A phase | |||
| green | A phase | white | B phase | |
| yellow | Z phase | |||
| whith | B phase | |||
| brown | Aphase | |||
| yellow | Z phase | gray | Bphase | |
| orange | Zphase | |||
| shield | F ·G | |||
| shield | F ·G |
Mechanical Parameters
| Measurement stroke
| 0-1000mm,0-1500mm | Hub circumference
| 100mm |
| Shell material | Imported aluminum alloy,surface anti- static interference,non-conductive | Duration | More than 2 million times |
| Steel wire rope | 0.6mm high flexibility imported coated steel wire rope | Stay wire at outlet | 5N |
| Linear accuiracy | 0.05%FS | Repeated accuracy | 0.01% |
| Resolution | 0.1,0.05,0.04,0.02, Other | Maximum round- trip speed | 1000mm/s |
Electrical Parameters
| Output signal | push pull,drive output | Working voltage | 5V,12V,24V |
| Number of pulse | 100-5000 pulses | Cable length | 2M(standard configuration), customizable |
| Protection | anti-wrong connection, with overload | Outlet direction | Radial(standard);axial |
Mechanical Drawings(mm)
