RSM60 Handwheel Encoder | CNC Machine Repair OEM Encoder

Economical handwheel encoder for CNC machine tools. Features dynamic/static grating, wide voltage protection, black/silver shells, universal hardware body, and easy installation.

Request a Quote

Product  model  and  meaning

RSM60B10024F
Category of product

handwheel

Outer diameter

60:60mm

Product series

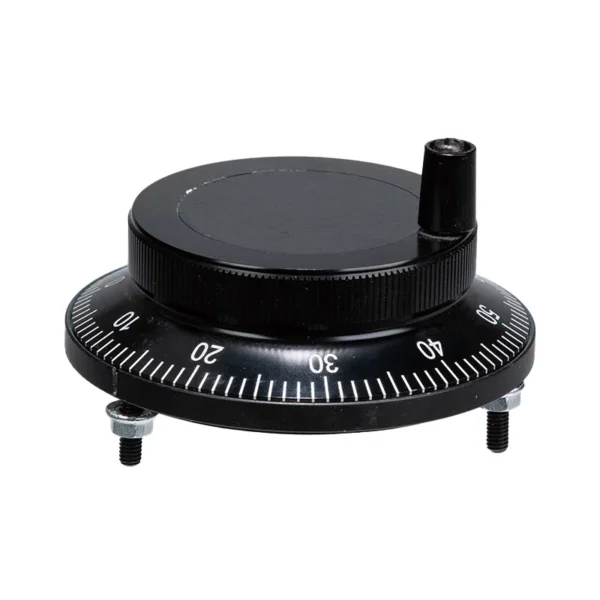

A:Black series

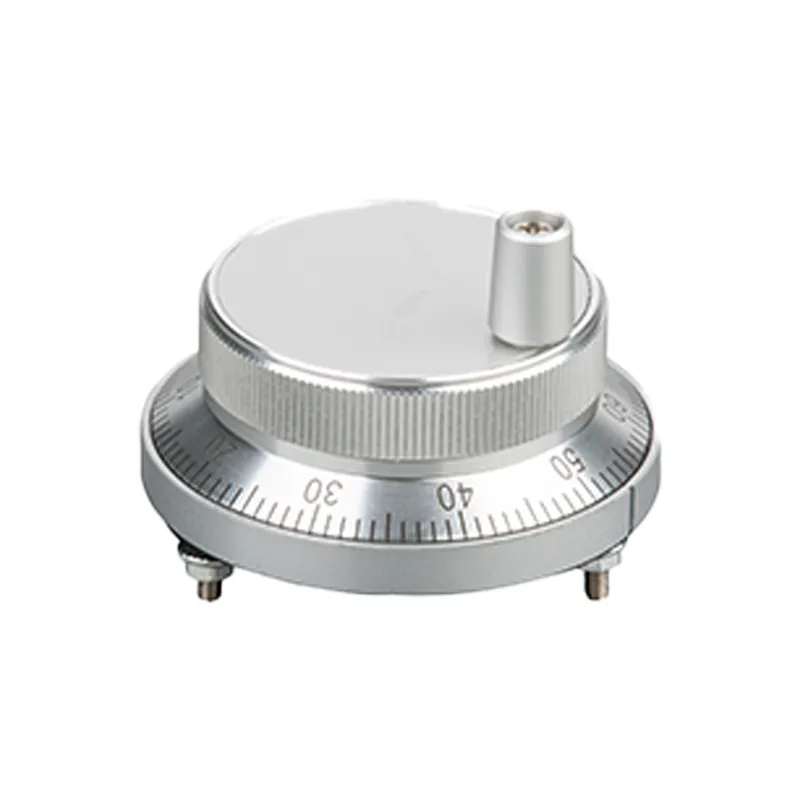

B:Silver Series

Resolution 25:25P/R

100:100P/R

supply voltage

24:5-24VDC

12:5-12VDC

05:5VDC

Output form

C:open collector output

F:complementary output

L:5V drive output

Output Phase Difference

complementary output/NPN collector open  circuit output

1 (1)

long line drive output

1 (2)

Mechanical drawings(mm)

3
