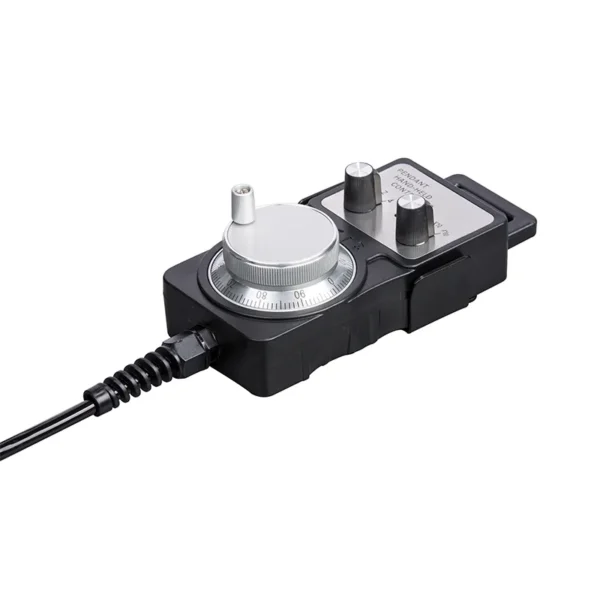

Product Model And Meaning
| RST1469 | 100 | MZ | 5 | L | ||
| shell size
| resolution | Output phase | voltage | Output form | ||
| 134×69 | 25:25P/R 100:100P/R | M:A、B 2-phase outputAB M4:A、B、-A、-B 4-phase outputAB、-A、-B | 5:+5V 526:+5-+26V | C:open collector output F:complementary output L:5V drive output A:24V drive output |
Wiring Table
| Line color | signal | Project |
| red | Vcc | Pulse generator |
| black | 0V | |
| green | Aphase | |
| white | B phase | |
| purple | A/phase | Long wire drive output |
| purple/black | B/phase | |
| green/black | + | External power supply of indicator+24V |
| white/black | ||
| OFF |
Select coordinate axis | |
| yellow | X | |
| yellow/black | Y | |
| brown | Z | |
| brown/black | 4 | |
| pink | 5 | |
| pink/black | 6 | |
| gray | ×1 | Select magnification factor |
| gray/black | ×10 | |
| orange | ×100 | |
| orange/black | COM | Common end |
| red/black | spare |
Output Phase Difference
Complementary output/NPN collector open circuit output
Longline drive output
Mechanical Drawings(mm)
