GLS50H Rotary Encoder Supplier | OEM Factory
Industrial 50mm rotary encoder, OEM replacement for Autonics E50S series. Features waterproof joint, reverse connection protection, push-pull circuit, and 24V linear drive for 150m transmission.

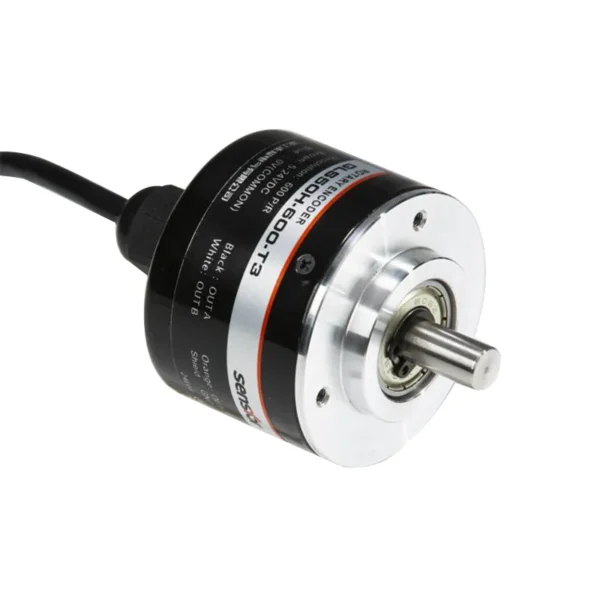

- Encoder Type: Incremental optical rotary encoder, φ50 mm housing, solid shaft design.
- Shaft & Cable: 8 mm shaft with 2 m cable for standard industrial installation.
- Electrical Features: 24V design with push-pull circuit, waterproof joint, and reverse connection protection.
- Signal Options: A/B/Z or ABZ output with multiple resolution choices from 10 to 4096 P/R.
Product Details
The GLS50H is a φ50 mm incremental rotary encoder designed as a reliable OEM replacement for the Autonics E50S series. It converts shaft rotation into stable pulse signals for accurate angle, position, speed, and revolution feedback in motion control systems. This rotary encoder is widely used in packaging machinery, conveyor systems, CNC equipment, textile machines, printing lines, and other industrial automation applications where dependable signal transmission is critical. Key features include a 24V design, push-pull circuit output, waterproof joint, and reverse connection protection for safer installation and long-term operation. With a solid 8 mm shaft, 2 m cable, multiple resolution options, and A/B/Z or ABZ output formats, it is a strong choice for industrial users, commercial buyers, electrical contractors, distributors, and OEM/ODM projects seeking custom supply and wholesale support.
Product Model And Meaning
| G | L | S | 50 | □ | H | 1000 | T | 3 | 2M | ||||
| Category of product | Type of product | Form of main shaft | Contour of product | Size of main shaft,shaft hole | Outlet and sealing form | Resolution | Output form | Output signal | Cable | ||||
| G:incremental type | L:photoelec- tricity | S:solid shaft | 50:φ50mm | □:Φ8mm | H:rear-outlet plastic | 10,20,50, 60,100, 200,360, 400,500, 600,800, 1000,1024,1 200,2000,20 48,2500,300 0,3600,4096 | C:open collector output T:push pull output L:5V 5V drive output A:24V drive output | 1:phase A signal 2:phase AB signal 3:phase ABZ signal 4:phase ABA/B/ signal 6:phase ABZA/B/Z/ signal | Default 2m line,For non 2m, labeling is sufficient | ||||
Wiring Table
| Line color | C/F/T output signal | Line color | L/A output signal | |
| brown | VCC | brown | VCC | |
| blue | GND | |||
| blue | GND | |||
| black | A phase | |||
| balck | A phase | white | B phase | |
| range | Z phase | |||
| white | B phase | |||
| red | A phase | |||
| orange | Z phase | gray | Bphase | |
| yellow | Z phase | |||
| shield | F ·G | |||
| shield | F ·G |
Output Phase Difference
complementary output/NPN collector open circuit output
longline drive output

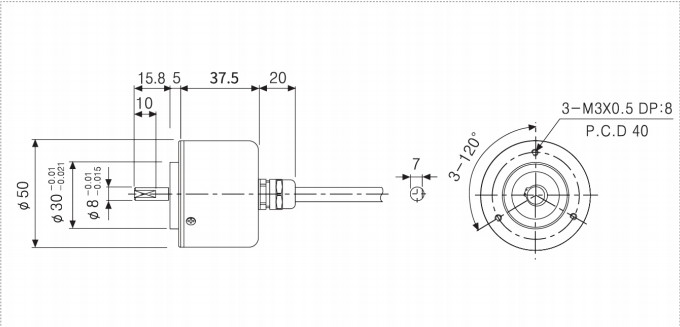

Mechanical Drawings(mm)
